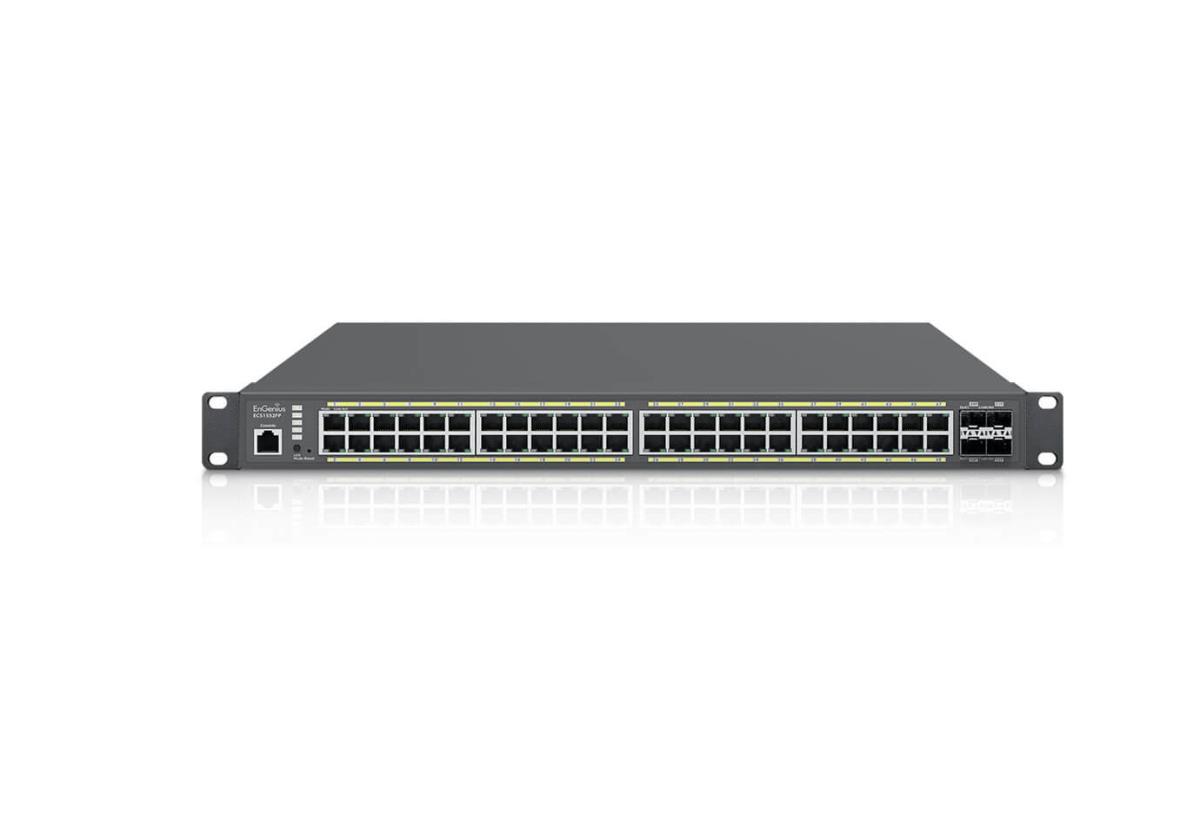

ENGENIUS Ecs1552fp Cloud Managed 48-port Gigabit 740w Poe+ Enterprise Switch
Redcorp# Q4342219
Article# ECS1552FP
Ecs1552fp Cloud Managed 48-port Gigabit 740w Poe+ Enterprise Switch
Other recommendations for your business
EnGenius Cloud Managed Layer 2+ Switch ECS1552FP offers 48 Gigabit PoE+ ports, 4 10G SFP+ uplink ports, and a 740W budget, ideal for SMBs. It supports zero-touch provisioning and centralized cloud management. With advanced security features, Voice-VLAN, and PoE Extended Mode, it optimizes network efficiency for quality voice and video traffic, enabling peak performance for SMBs
Specs
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
48
SFP+ module slots quantity
4
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Switching capacity
176 Gbit/s
MAC address table
32000 entries
Number of queues
8
Static route
Yes
Number of static routes
63
Number of IP interfaces
20
Jumbo frames support
Yes
Jumbo frames
9000
Security
DHCP features
DHCP relay, DHCP snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SSH, SSL/TLS
Authentication
Port-based authentication
Authentication type
IEEE 802.1x, RADIUS
Queue scheduling algorithms
Strict Priority Queue (SPQ), SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Multicast features
Multicast forwarding
Number of multicast groups filtered
256
Multicast Listener Discovery (MLD) snooping
v1
Protocols
Management protocols
SNMP v1/v2c/v3
Design
Rack mounting
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Performance
Internal memory
512 MB
Flash memory
128 MB
Firmware upgradeable
Yes
Power
Power supply included
Yes
Redundant power supply (RPS) support
No
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
48
Total Power over Ethernet (PoE) budget
740 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
440 mm
Depth
310 mm
Height
44 mm
Weight
5.9 kg
Packaging content
Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes
Logistics data
Harmonized System (HS) code
85176990
