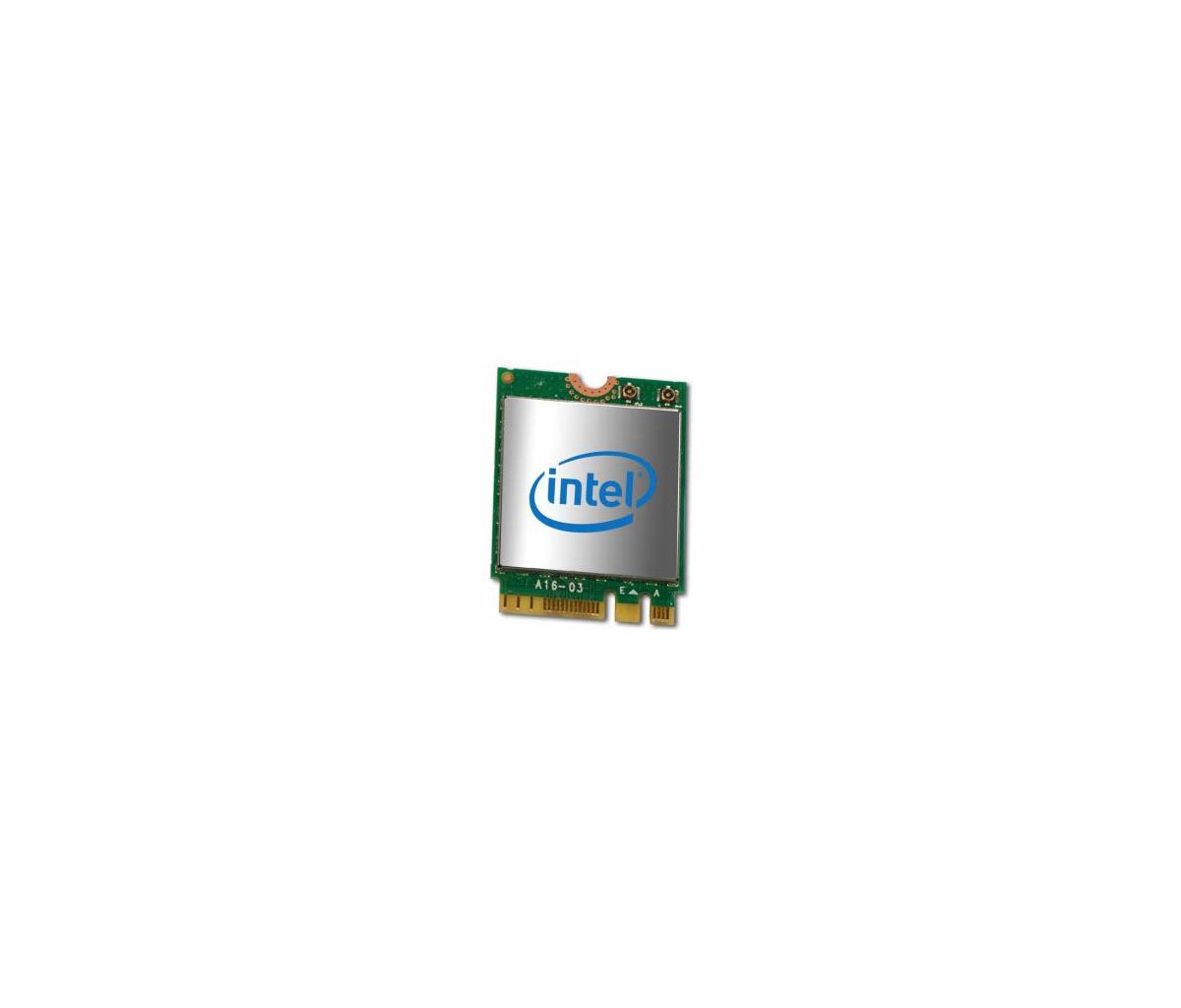

INTEL Dual Band Wireless-ac 3168 + Bluetooth Adapter M.2 2230 Pci-e
Redcorp# 2730A605
Article# 3168.NGWG
Dual Band Wireless-ac 3168 + Bluetooth Adapter M.2 2230 Pci-e
Other recommendations for your business
Exceptional Wi-Fi. Exceptional Features. Exceptional Connected Experience
The Intel® Dual Band Wireless-AC 3168 is Intel's 3rd generation 802.11 ac, dual band, 1x1 Wi-Fi + Bluetooth® adapter. It’s engineered to be faster, stronger, greener1 than previous gen Intel 802.11ac 1x1 products with lower power in idle modes, Intel® Dynamic Regulatory Solution and complete Microsoft Windows 10 support. Combined with Intel ® Core™ processors and exceptional Intel wireless innovations, the Intel® Dual Band Wireless-AC 3168 dramatically reshapes your connected experience at home, work or on the go.
Specs
Ports & interfaces
Connectivity technology
Wireless
Host interface
PCI Express
Interface
WLAN
Network
Maximum data transfer rate
433 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.1x
Wi-Fi
Yes
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported
433 Mbit/s
Security algorithms
EAP-AKA, EAP-SIM, EAP-TLS, PEAP, TTLS, WPA, WPA2
MU-MIMO
No
Bandwidth (first)
2.4 GHz
Bandwidth (second)
5 GHz
Bluetooth
Yes
Bluetooth version
4.2
Design
Internal
Yes
Antenna
Yes
Antenna design
Internal
Antenna type
1x1
Form factor
M.2 2230
Safety
UL, C-UL, CB
Certification
Wi-Fi, FIPS, FISMA
System requirements
Compatible operating systems
Windows 8.1, 64-bit*|Windows 8.1, 32-bit*|Windows 7, 64-bit*|Windows 7, 32-bit*|Windows 10, 64-bit*|Windows 10, 32-bit*|Linux*
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 80 °C
Operating relative humidity (H-H)
50 - 90%
Weight & dimensions
Width
30 mm
Depth
2.4 mm
Height
22 mm
Weight
2.4 g
Packaging data
Quantity
1
Logistics data
Harmonized System (HS) code
8517620090
Other features
Antennas quantity
2
Maximum operating temperature
80 °C
Supported Under vPro
No
Interface type
Wi-Fi(PCIe), BT(USB)
Conflict-Free
Yes
Launch date
Q1'16
Product brief URL
http://www.intel.com/content/www/us/en/wireless-products/dual-band-wireless-ac-3168-brief.html
Product type
Wireless
Status
Launched
Processor family
Intel Wireless-AC Products
Ethernet adapter ARK ID
94854
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G147045
Compliance
FIPS, FISMA
Product series
Intel® Wireless Products
