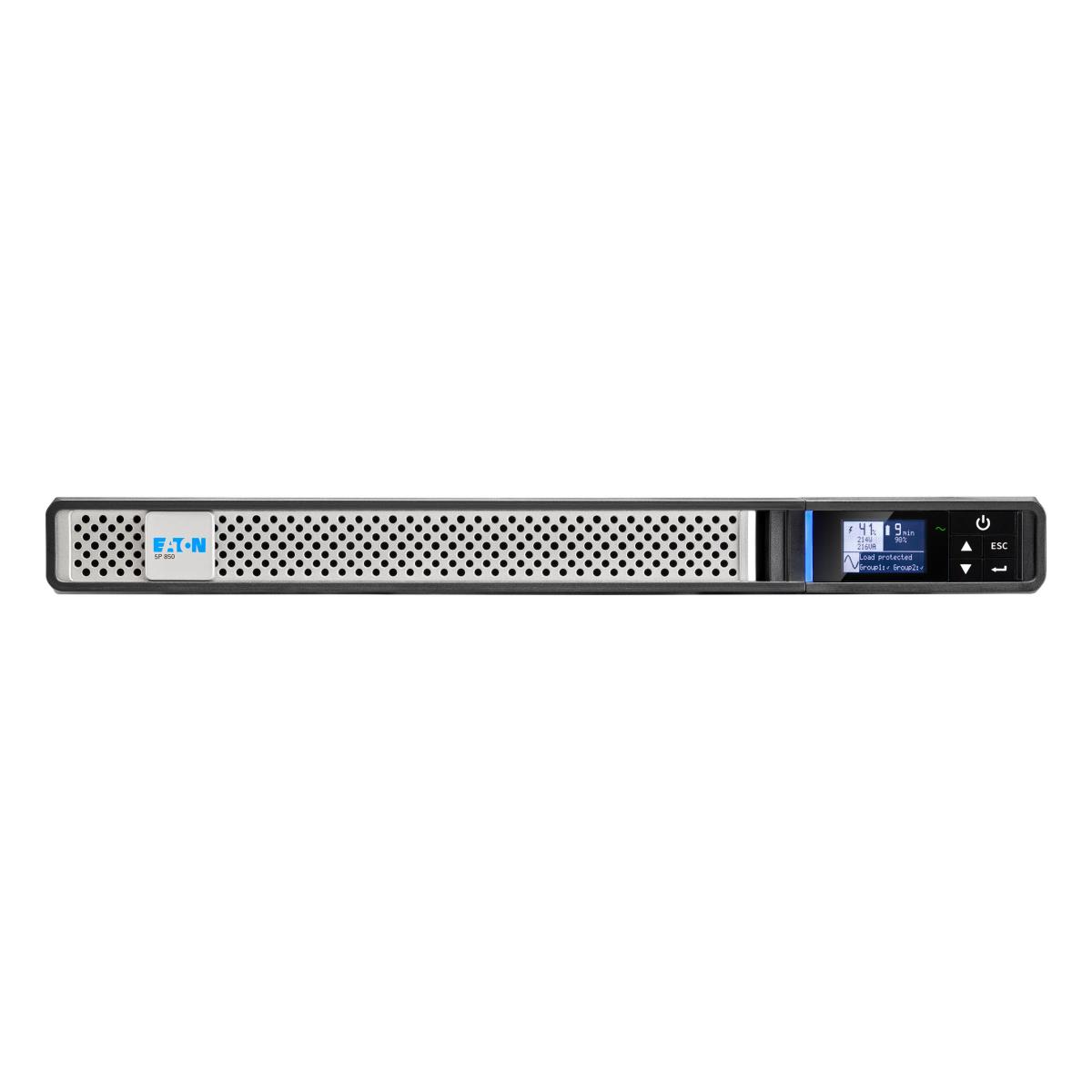

EATON CORPORATION Eaton UPS 5P Gen2 - 850VA, 680W, Input: C14, Outputs: (4) C13, Rack, 1U
Redcorp# N4836749
Article# 5P850IRG2
Eaton UPS 5P Gen2 - 850VA, 680W, Input: C14, Outputs: (4) C13, Rack, 1U
Other recommendations for your business
Specs
Features
UPS topology
Line-Interactive
Output power capacity
0.85 kVA
Output power
680 W
Waveform
Sine
Input operation voltage (min)
150 V
Input operation voltage (max)
294 V
Input frequency
47/70 Hz
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
Heat dissipation
307 BTU/h
Number of input phases
1
Number of output phases
1
Efficiency
98%
Noise level
35 dB

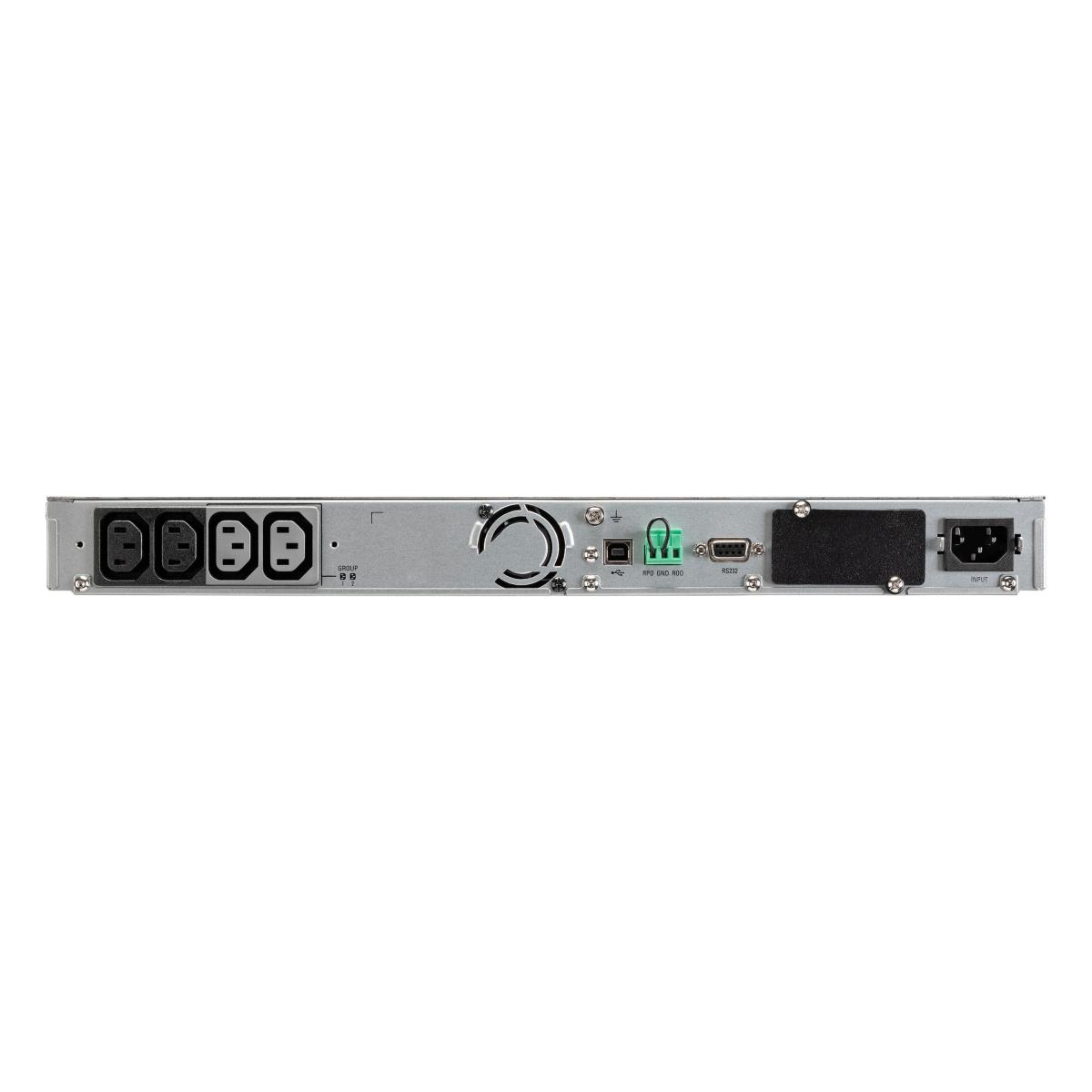

Ports & interfaces
AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
4 AC outlet(s)
USB port
Yes
USB port type
USB Type-B
Serial interface
Yes
Serial interface type
RS-232
Serial ports quantity
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
7 Ah
Battery voltage
6 V
Number of batteries supported
4
Design
Form factor
Tower
Rack capacity
1U
Product colour
Black, Silver
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Certificates
Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Weight & dimensions
Width
438 mm
Depth
509 mm
Height
43.2 mm
Weight
13.7 kg
