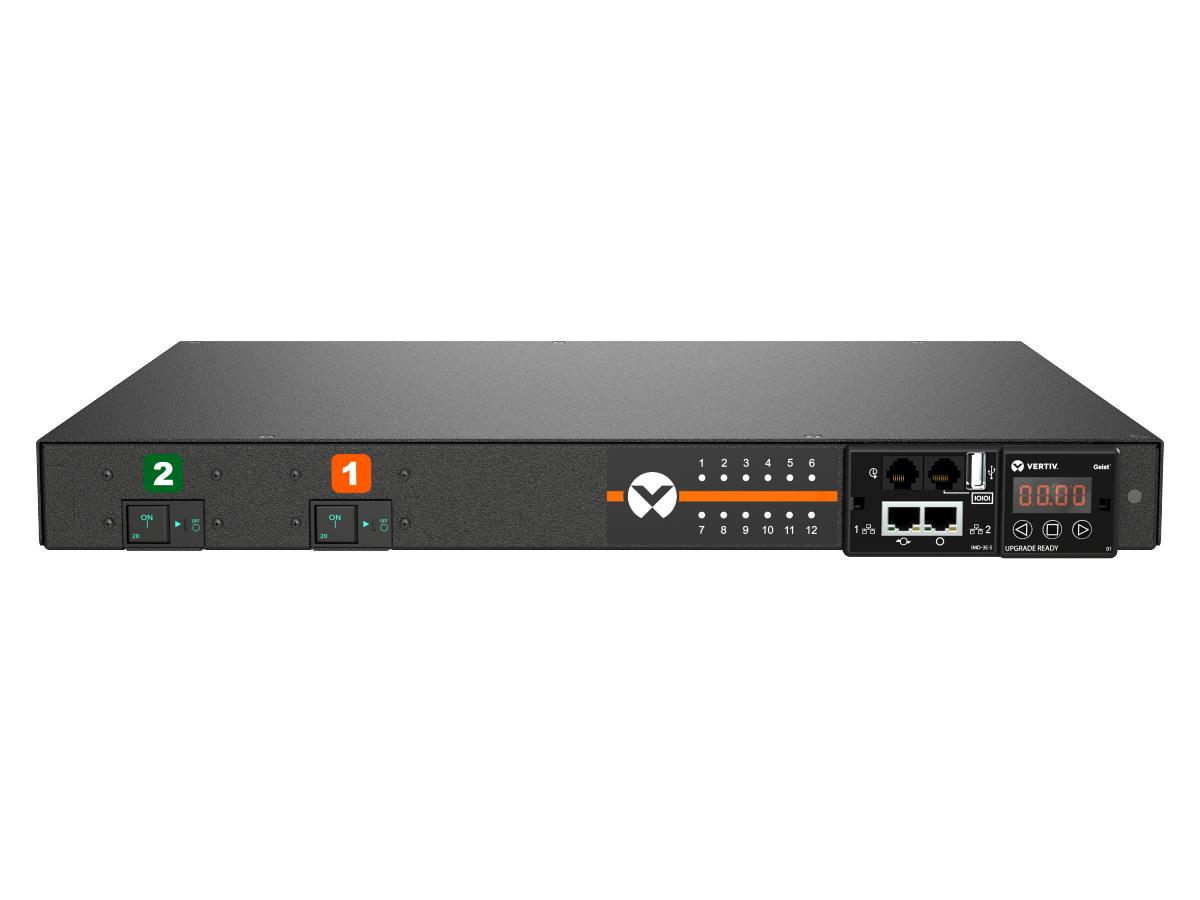

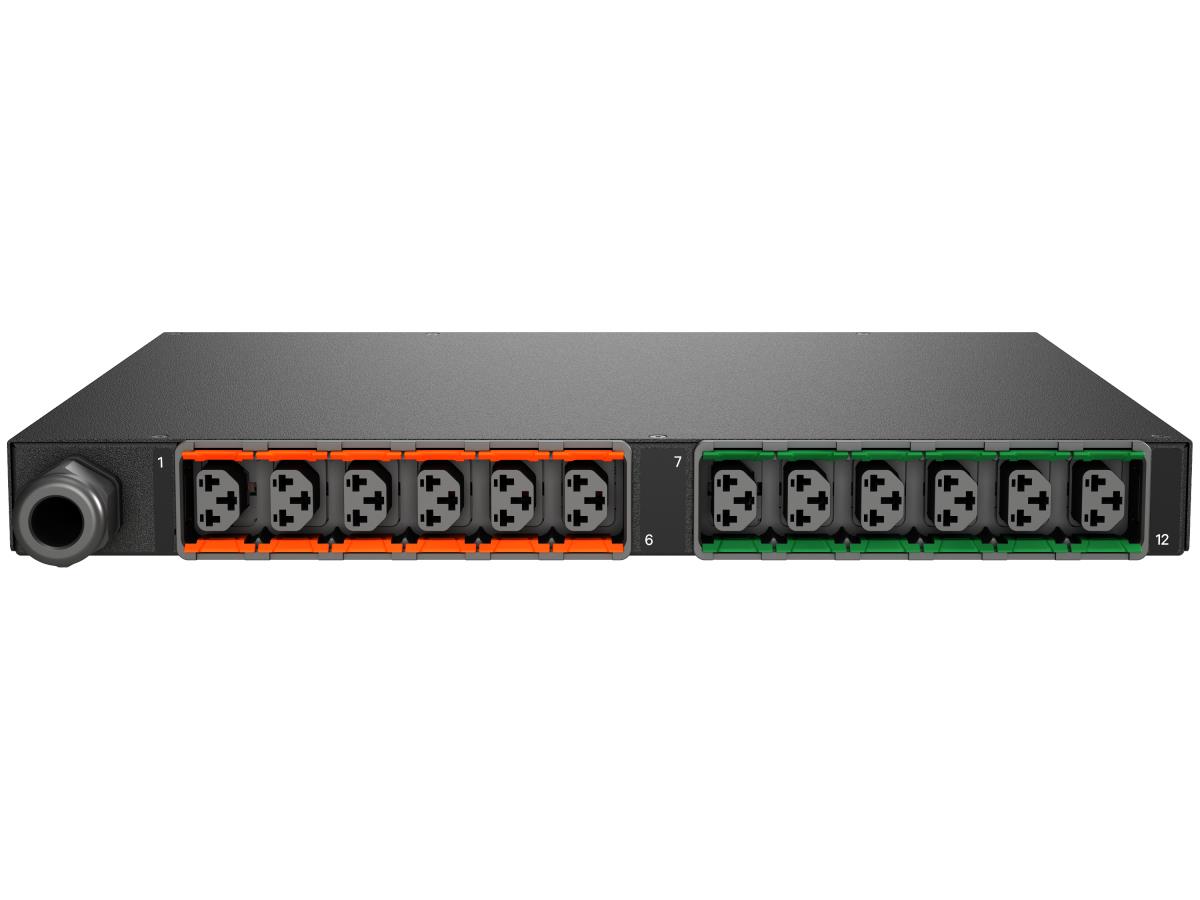

VERTIV Geist Rack PDU, Switched (Outlet Level), EC, 1U, input IEC 60309 230V 32A, combi outputs (12)C13 or C19
Redcorp# N6415583
Article# GU30202
Geist Rack PDU, Switched (Outlet Level), EC, 1U, input IEC 60309 230V 32A, combi outputs (12)C13 or C19
Other recommendations for your business
Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.
Specs
Design
PDU types
Switched
Type
Single-phase
Rack capacity
0U
Mounting
Horizontal
Product colour
Black
Display
LED
On/off switch
Yes
Ports & interfaces
AC outlets quantity
12 AC outlet(s)
Power plug
IEC 60309
AC outlet types
C13 coupler, C19 coupler
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB ports quantity
1
Features
Reset button
Yes
LED indicators
Yes
Cable length
3 m
Management features
Supported network protocols
DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP
Power
Nominal input voltage
200-240 V
AC input frequency
50/60 Hz
Maximum current
32 A
Load capacity
230 VA
Power protection features
Over current
Certificates
Certification
CE Marked
UKCA Marked
Complies with IEC 62368-1 (DOC Available)
Complies with EN 55032 and EN 55035
RoHS Compliant
C? Mark
RCM Mark (EMC Only)
China RoHS
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Weight & dimensions
Width
432 mm
Depth
305 mm
Height
44 mm
Packaging data
Package weight
5.44 kg
