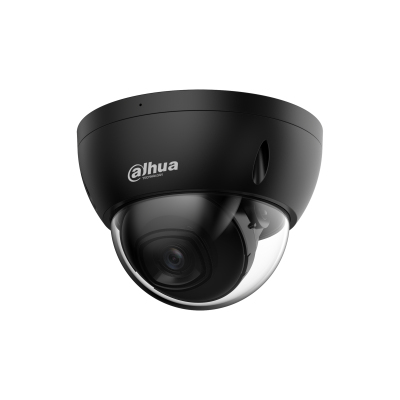

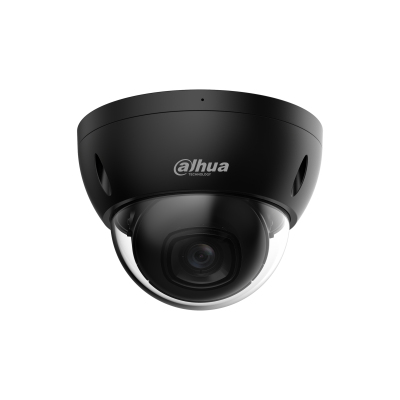

DAHUA Network Wizsense Fixed Focal Dome Camera Ipc-hdbw2441e-s 4mpix 2.8mm - 3.6mm Lens Ir 30m
Redcorp# U4593091
Article# DH-IPC-HDBW2441E-S
Network Wizsense Fixed Focal Dome Camera Ipc-hdbw2441e-s 4mpix 2.8mm - 3.6mm Lens Ir 30m
Other recommendations for your business
IPC-HDBW2441E-S
4MP IR Fixed-focal Dome WizSense Network Camera
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Specs
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
Wide Dynamic Range (WDR)
Yes
Certification
CE-LVD: EN62368-1;
CE-EMC: 2014/30/EU;
FCC: 47 CFR FCC Part 15, B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Design
Form factor
Dome
Mounting type
Ceiling
Product colour
Black
Housing material
Metal
International Protection (IP) code
IP67
IK code
IK10
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0 lx
Angle of rotation
355°
Lens viewing angle, horizontal
102°
Lens viewing angle, vertical
54°
Lens viewing angle, diagonal
121°
Tilt angle range
0 - 65°
Pan range
0 - 355°
White balance
Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter type
Electronic
Camera shutter speed
1/3 - 1/100000 s
Adjustment shutter speed
Auto/Manual
Number of Privacy masking areas
4
Image sensor
Optical sensor size
25.4 / 2.9 mm (1 / 2.9")
Progressive scan
Yes
Sensor type
CMOS
Lens system
Number of lenses
1
Detect distance
63.6 m
Observe distance
25.4 m
Recognize distance
12.7 m
Fixed focus
Yes
Maximum aperture number
1.6
Identify distance
6.4 m
Fixed focal length
2.8 mm
Closest focusing distance
1.1 m
Night vision
Night vision
Yes
Night vision distance
30 m
LED type
IR
Number of illumination LEDs
3
Video
Maximum resolution
2688 x 1520 pixels
Total megapixels
4 MP
Video compression formats
H.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions
352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate
30 fps
Video streaming
Yes
Noise reduction
Yes
Noise reduction technology
3D noise reduction
Gain control type
Auto/Manual
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate
12 kbps–6144 kbps
Back Light Compensation (BLC)
Yes
Highlight Compensation (HLC)
Yes
Region of Interest (ROI) encoding
Yes
Audio
Signal-to-Noise Ratio (SNR)
56 dB
Built-in microphone
Yes
Voice codecs
G.711Mu, G.711a, G.726, PCM
Audio detection
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Supported network protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Wi-Fi
No
Bluetooth
No
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
256 GB
Internal memory
128 MB
ROM capacity
128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Video motion detection
Yes
Active tampering alarm
Yes
IP address filtering
Yes
Intelligent Video Surveillance (IVS) system features
Intrusion, Tripwire
Mirror
Yes
Management features
Web-based management
Yes
Web browser
Yes
Power
Power source type
DC, PoE
Power consumption (typical)
2.3 W
Power consumption (max)
5 W
Power consumption (Power over Ethernet (PoE))
2.9 W
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Height
81 mm
Diameter
11 cm
Weight
340 g
Packaging data
Package weight
490 g
Packaging content
Number of cameras
1
