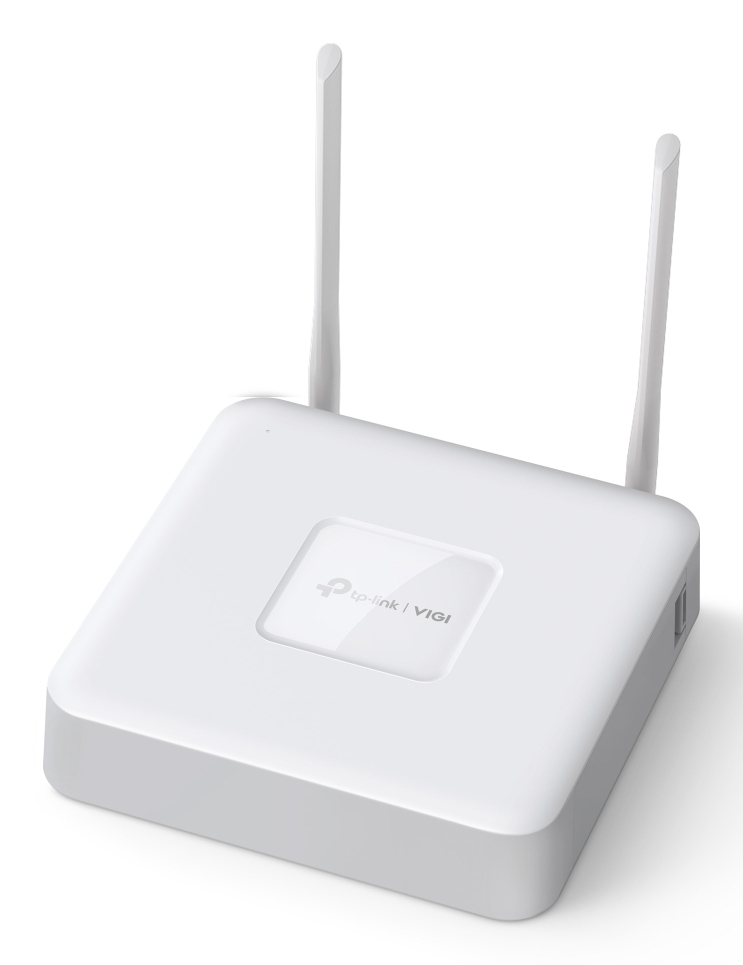

TP-LINK Network Video Recorder Vigi Nvr1108h-w 8ch 4k Hdmi
Redcorp# P6043997
Article# VIGI NVR1108H-W
Network Video Recorder Vigi Nvr1108h-w 8ch 4k Hdmi
Other recommendations for your business
Security Never Shuts Down
8 Channel Wi-Fi Network Video Recorder
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
Specs
Performance
Video input channels
8 channels
Maximum resolution
3840 x 2160 pixels
Supported resolutions
3840 ×2160, 1920 × 1080, 1680× 1050, 1440 × 900, 1280 × 1024, 1280 × 720
Video motion detection
Yes
Video loss detection
Yes
Multi-screen
Yes
Backup function
Yes
Input bandwidth
80 Mbit/s
Output bandwidth
60 Mbit/s
Recording modes
Manual, Schedule
Wireless LAN features
Wi-Fi
Yes
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)
300 Mbit/s
Wi-Fi band
Single-band (2.4 GHz)
Security algorithms
WPA-PSK, WPA2-PSK
Hard drive
HDD capacity
0 GB
Maximum storage capacity
10 TB
HDD interface
SATA
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
10,100 Mbit/s
Ethernet WAN
Yes
HDMI ports quantity
1
VGA (D-Sub) output ports
1
USB 2.0 ports quantity
2
Audio RCA inputs
1
Audio RCA outputs
1
DC-in jack
Yes
Supported network protocols
NTP
Features
LED indicators
Yes
Reset button
Yes
Product colour
White
Certification
CE, NCC, JRF, RCM, KC, BSMI, VCCI, HDMI
Power
Power consumption (max)
16.3 W
Power consumption (typical)
5.7 W
System requirements
Mobile operating systems supported
Android, iOS
Browser supported
Chrome (57+), Firefox (52+), Edge (91+)
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
200.3 mm
Depth
200.3 mm
Height
43 mm
Weight
500 g
Package weight
1 kg
