SHUTTLE COMPUTER EDGE PC - SPCEL02WA - Celeron J6412 - 8GB Ram - 120GB SSD - Win 11 IoT

Redcorp# 88702902   Article# SPCEL02WA
 Search More  Mini PC
Key Specifications
More Details

Other recommendations for your business


ROBUST INDUSTRY PC WITH VESA/DIN-RAIL MOUNT

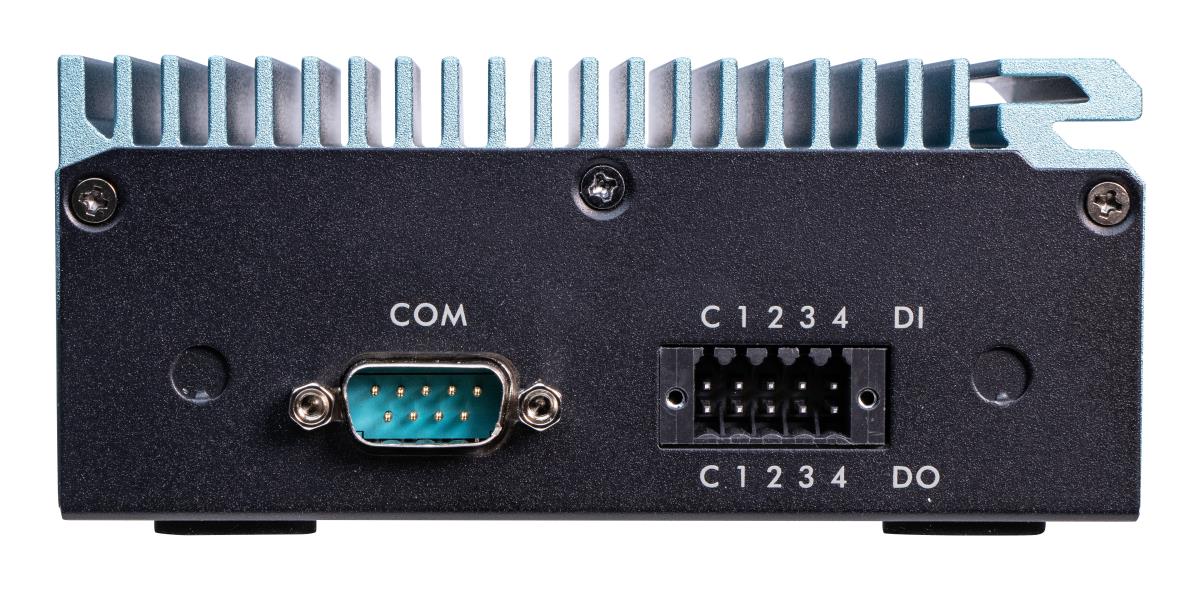

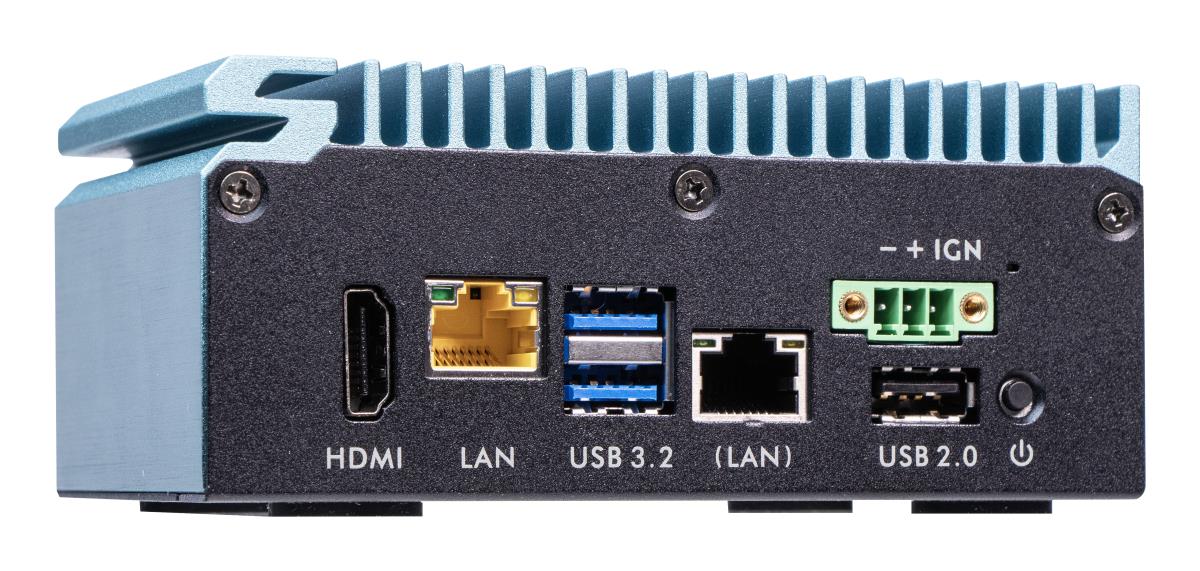

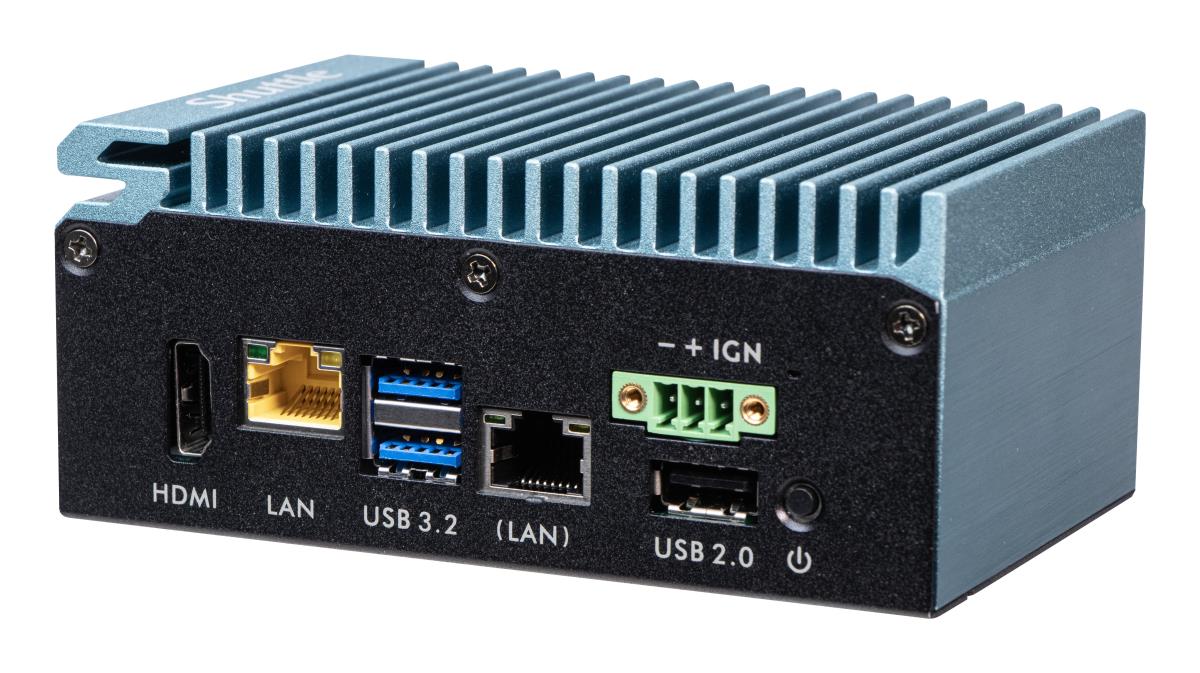

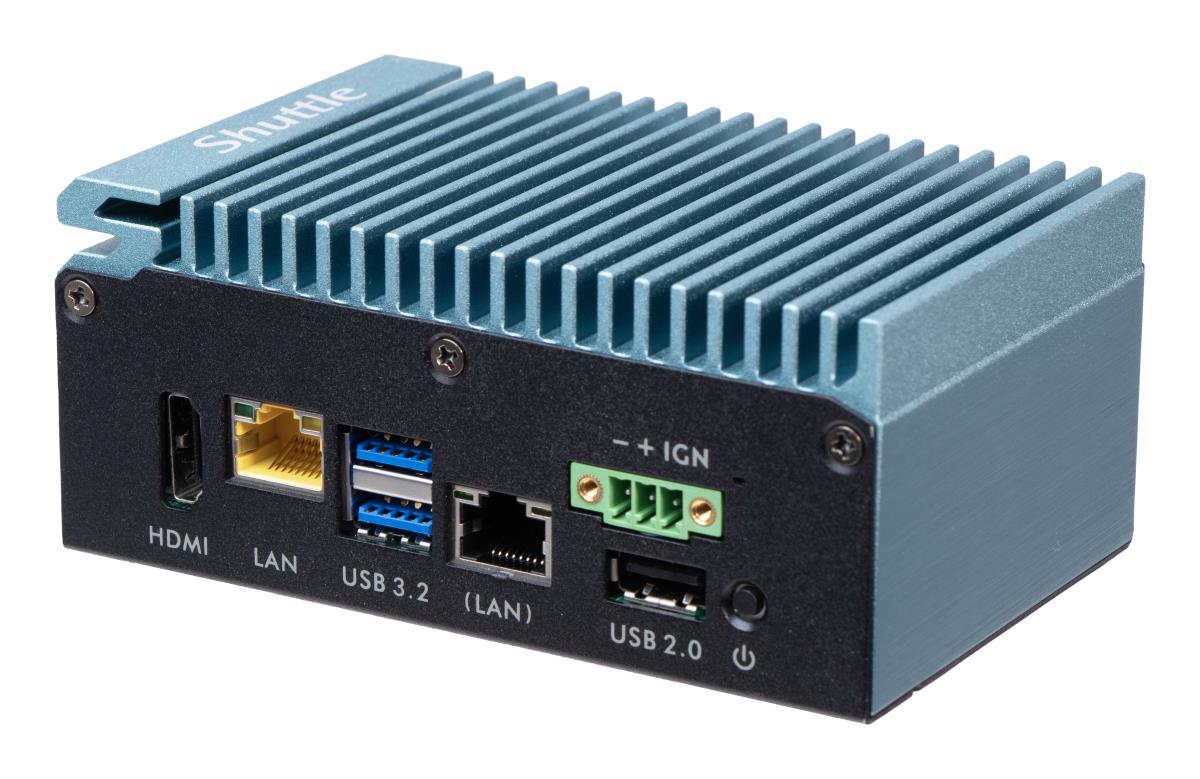

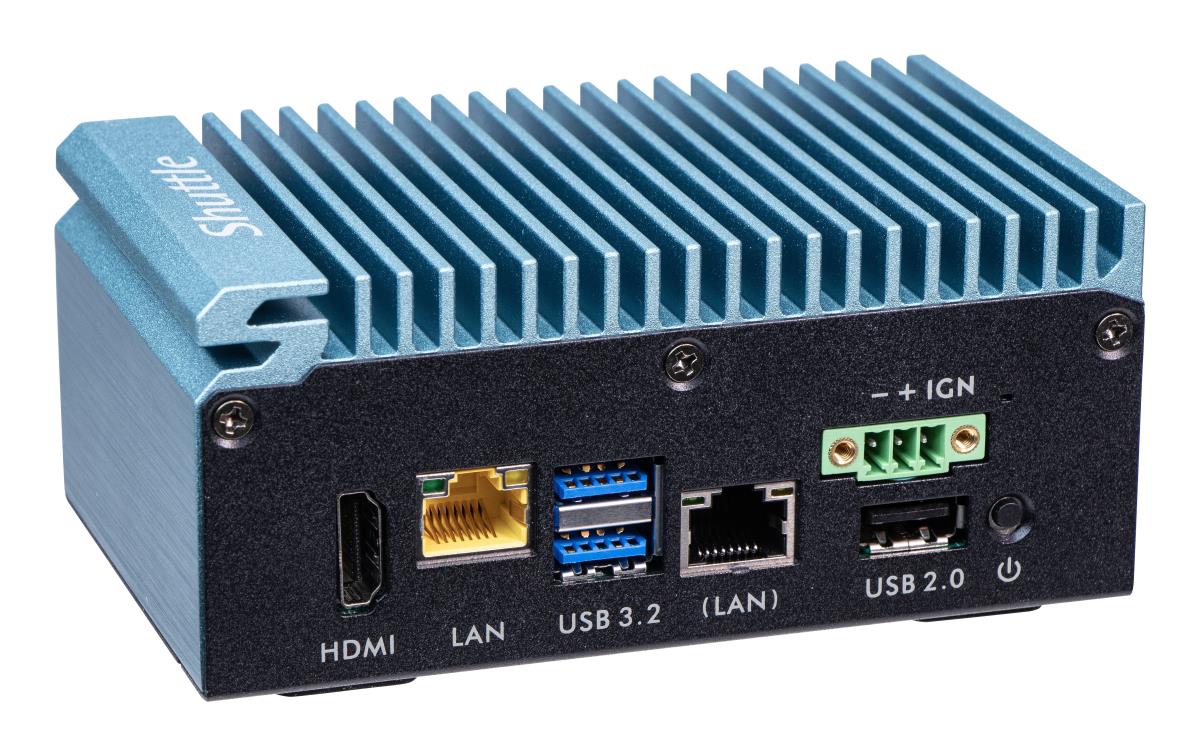

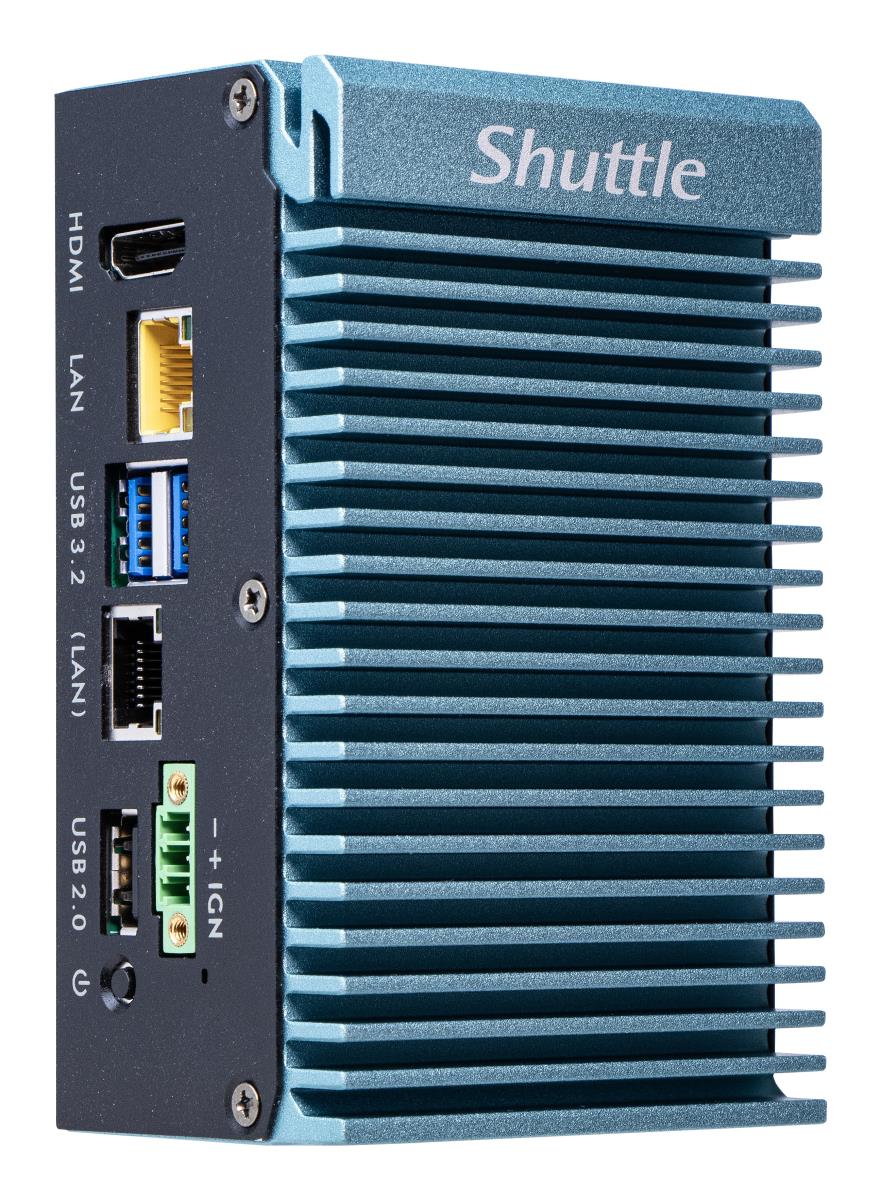

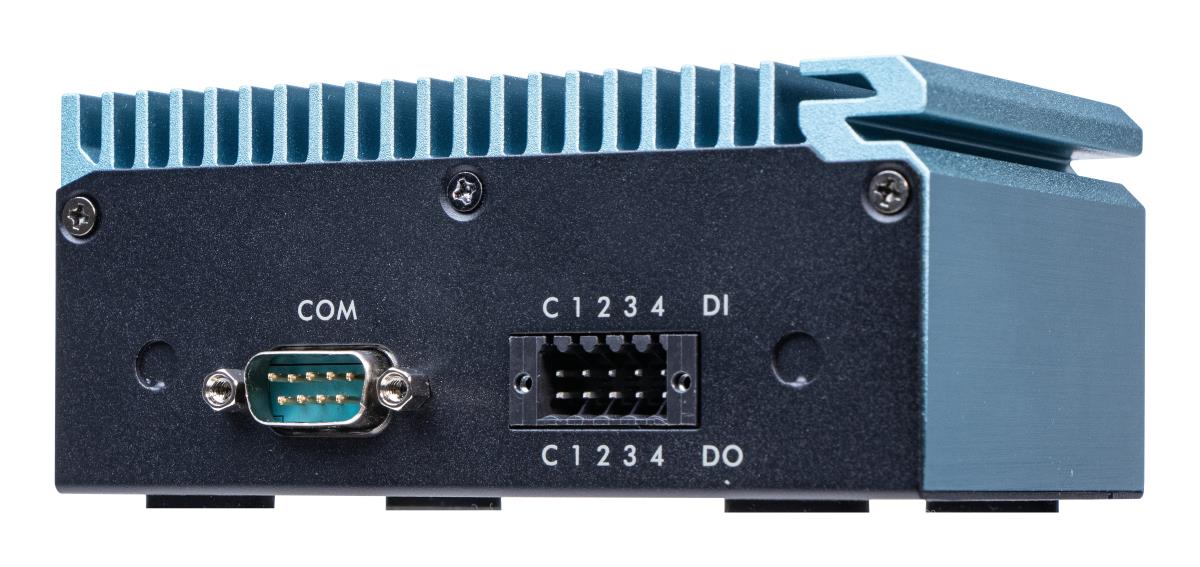

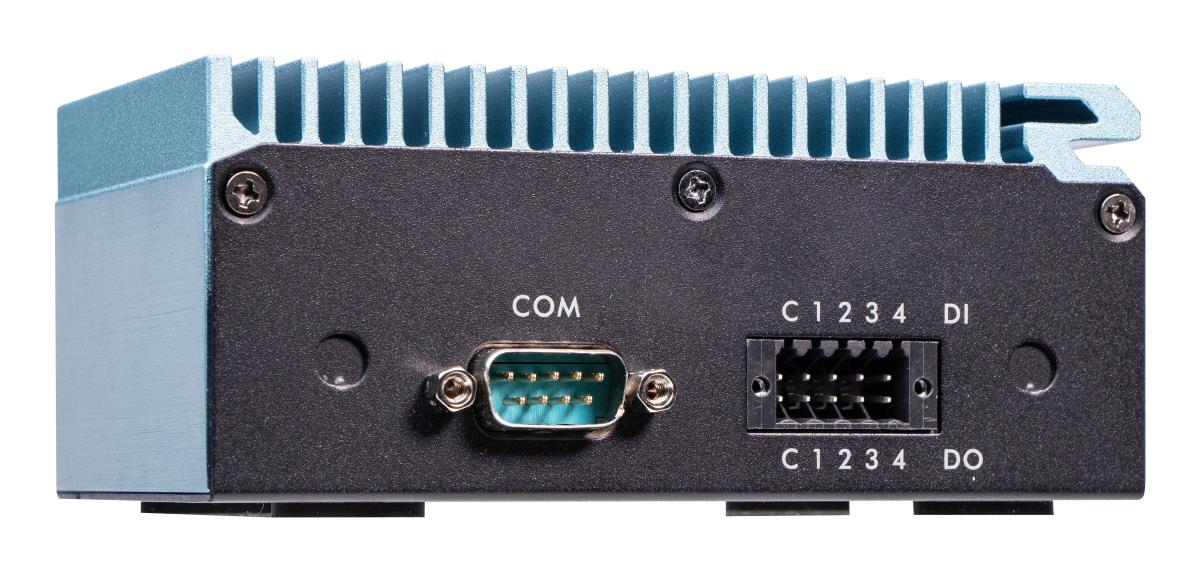

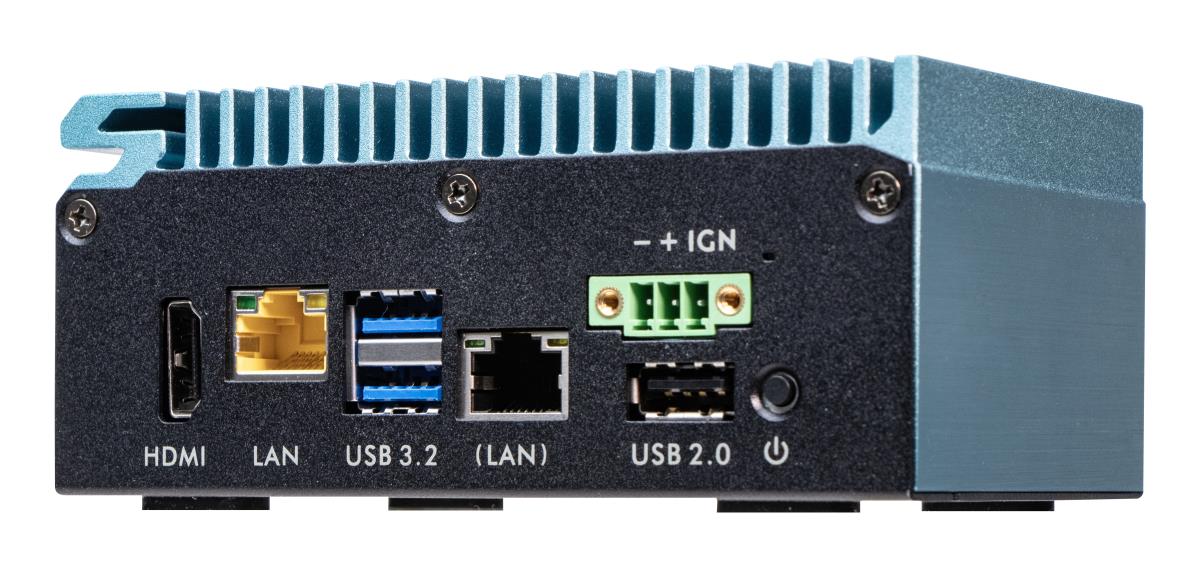

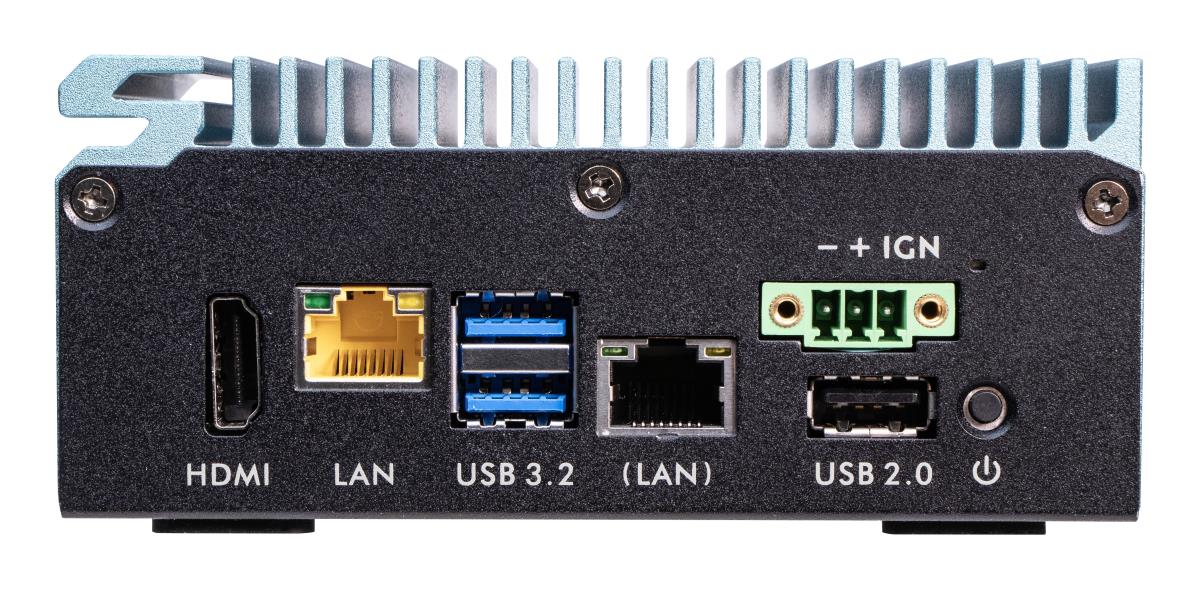

The Shuttle Edge PC SPCEL02WA System (based on SPCEL02) is a fanless IPC barebone in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron "Elkhart Lake" processor with 8 GB RAM and 120 GB SSD and Windows 11 IoT operation system. The small housing offers an amazing variety of connections, including dual LAN, COM port and Digital I/O. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.

Specs
Processor
Processor manufacturer
Intel
Processor family
Intel Celeron J
Processor model
J6412
Processor cores
4
Processor threads
4
Processor boost frequency
2.6 GHz
Processor frequency
2 GHz
Processor cache
1.5 MB
Processor cache type
L2
Number of processors installed
1
Memory
Internal memory
8 GB
Maximum internal memory
32 GB
Internal memory type
DDR4-SDRAM
Memory slots
2x SO-DIMM
Memory clock speed
3200 MHz
Storage
Total storage capacity
120 GB
Storage media
SSD
Optical drive type
No
Number of storage drives installed
1
Total SSDs capacity
120 GB
Number of SSDs installed
1
SSD capacity
120 GB
SSD interface
SATA
SSD form factor
M.2
M.2 SSD size
2242 (22 x 42 mm)
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel® UHD Graphics
Network
Ethernet LAN
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
LAN controller
Intel I226-V
Wi-Fi
No
Ports & interfaces
USB 2.0 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.0b
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Serial ports quantity
1
Design
Chassis type
Mini PC
Volume
0.46 L
Placement supported
Horizontal/Vertical
VESA mounting
Yes
Product colour
Black, Blue
Housing material
Aluminium
Performance
Password protection
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Product type
Mini PC
Software
Operating system installed
Windows 10 IoT
Operating system architecture
64-bit
Power
Power supply
90 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Certificates
Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), VCCI, cTUVus
Weight & dimensions
Width
120 mm
Depth
75 mm
Height
51 mm
Weight
720 g
Package weight
1.2 kg
Packaging content
VESA mount included
Yes
Logistics data
Harmonized System (HS) code
84714900
Display
Display included
No
Other features
Fanless
Yes
