KINGSTON 8GB Ddr4 3200mt/s ECC Cl22 DIMM 1rx8 Hynix E
Redcorp# 2935H755
Article# KSM32ES8/8HE
8GB Ddr4 3200mt/s ECC Cl22 DIMM 1rx8 Hynix E
Other recommendations for your business

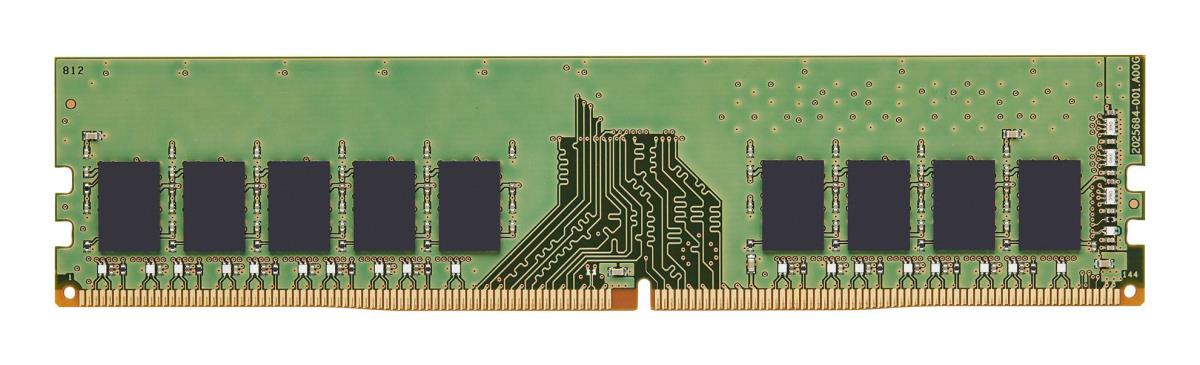

Kingston's KSM32ES8/8HE is a 1G x 72-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Specs
Features
Buffered memory type
Unregistered (unbuffered)
CAS latency
22
Internal memory
8 GB
Memory layout (modules x size)
1 x 8 GB
Internal memory type
DDR4
Memory clock speed
3200 MHz
Memory data transfer rate
3200 MT/s
Component for
Server
Memory form factor
288-pin DIMM
ECC
Yes
Memory ranking
1
Memory voltage
1.2 V
Module configuration
1024M x 72
Row cycle time
45.75 ns
Row active time
32 ns
SPD profile
Yes
Programming power voltage (VPP)
2.5 V
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
