NEC Large Format Display - Multisync M861 IGB - 86in - 3840x2160 (uhd)

Redcorp# 38909226   Article# 60005949
 Search More  LCD Monitor - 6x in & Above
Key Specifications
More Details

Conectivity

HDMI

DISPLAY PORT

Other recommendations for your business

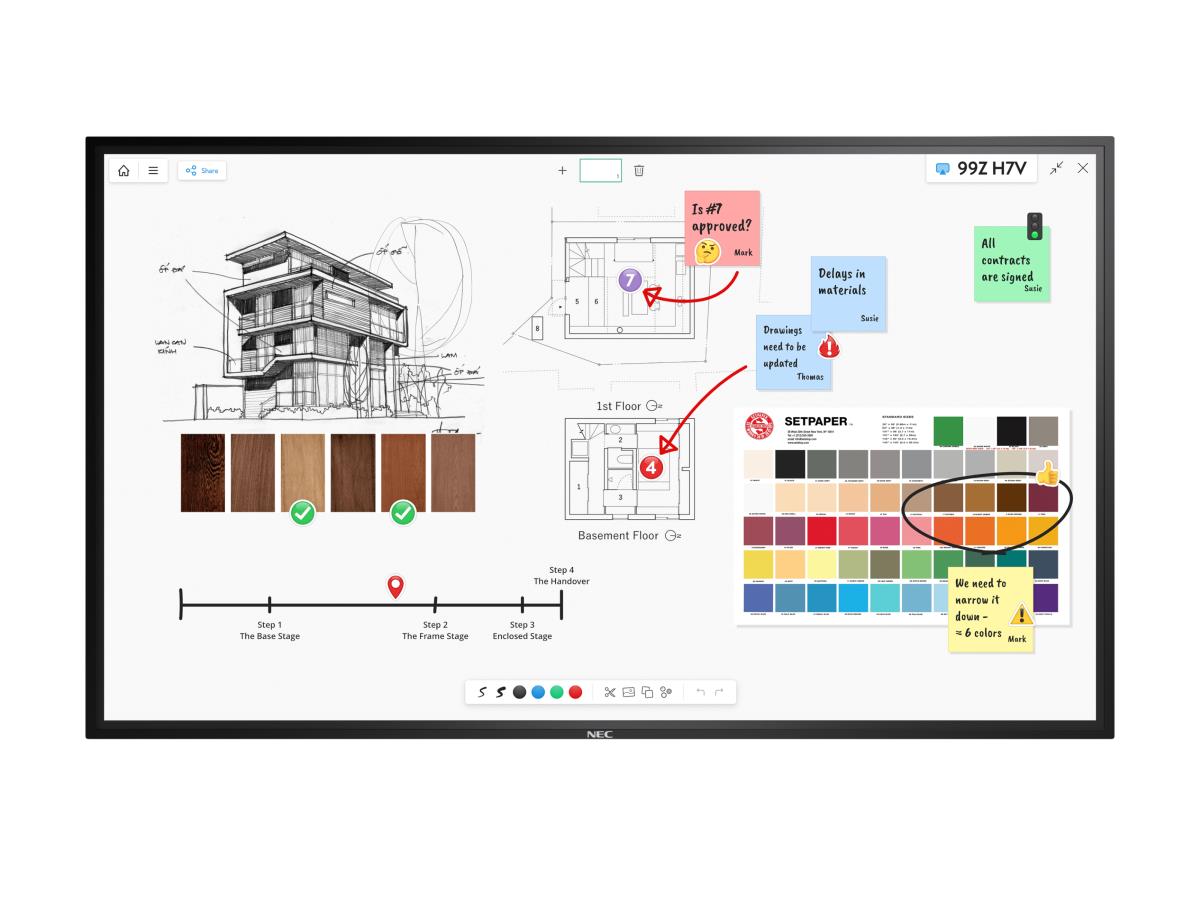

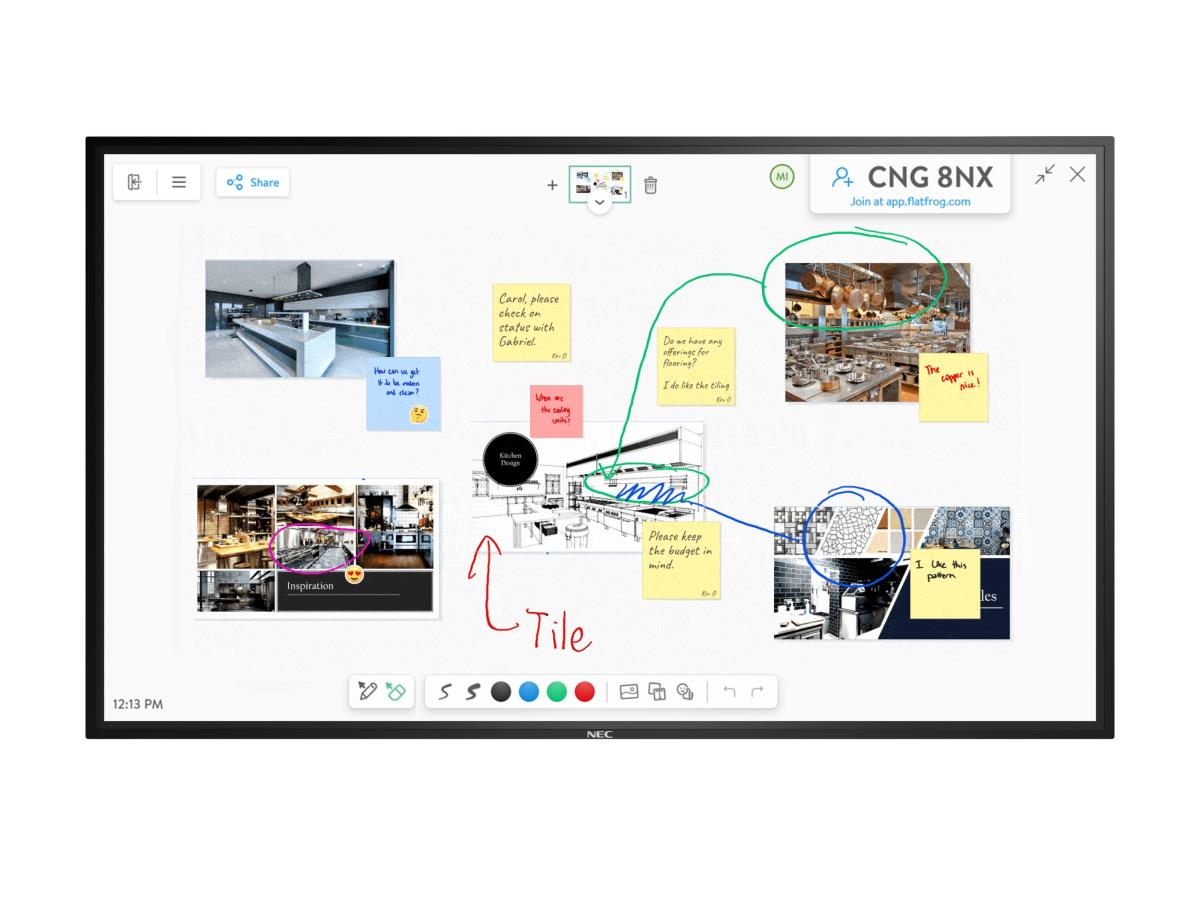

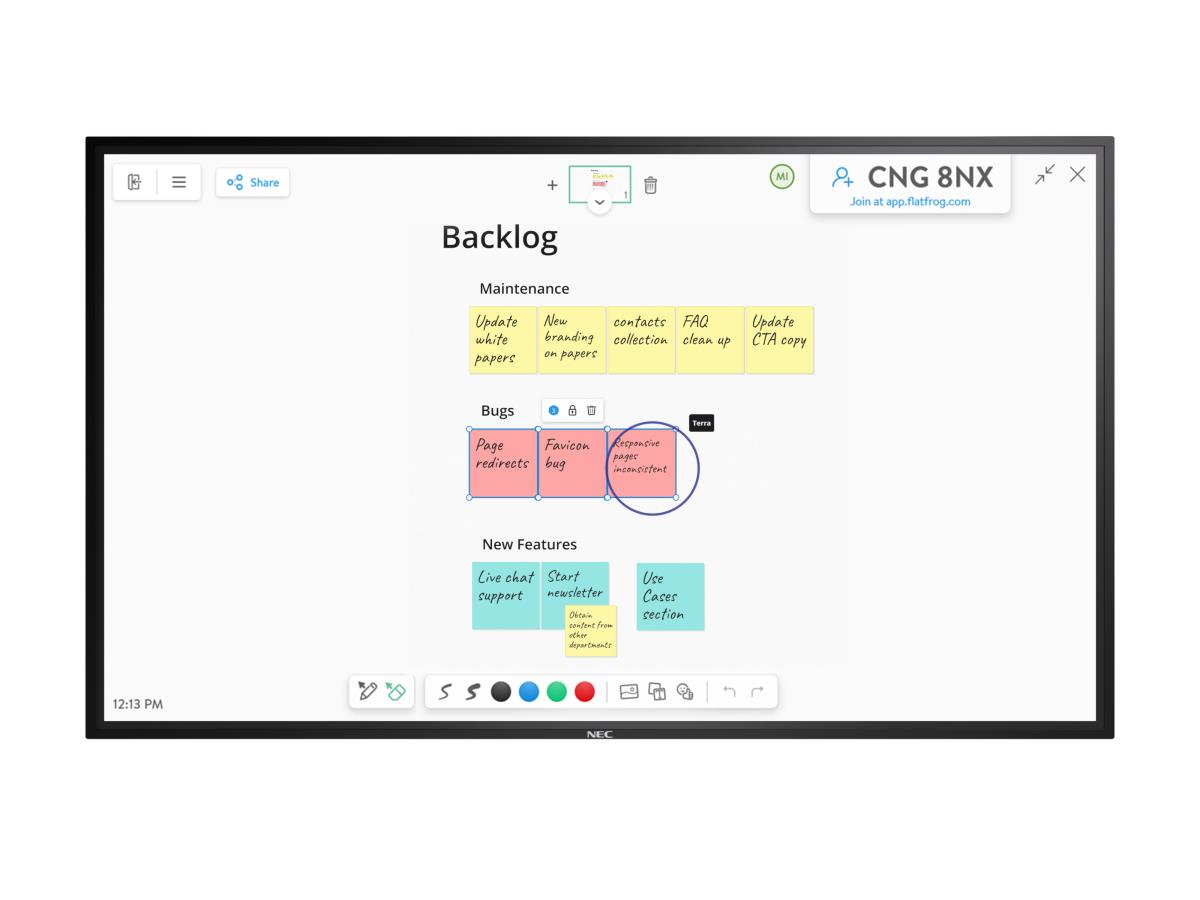

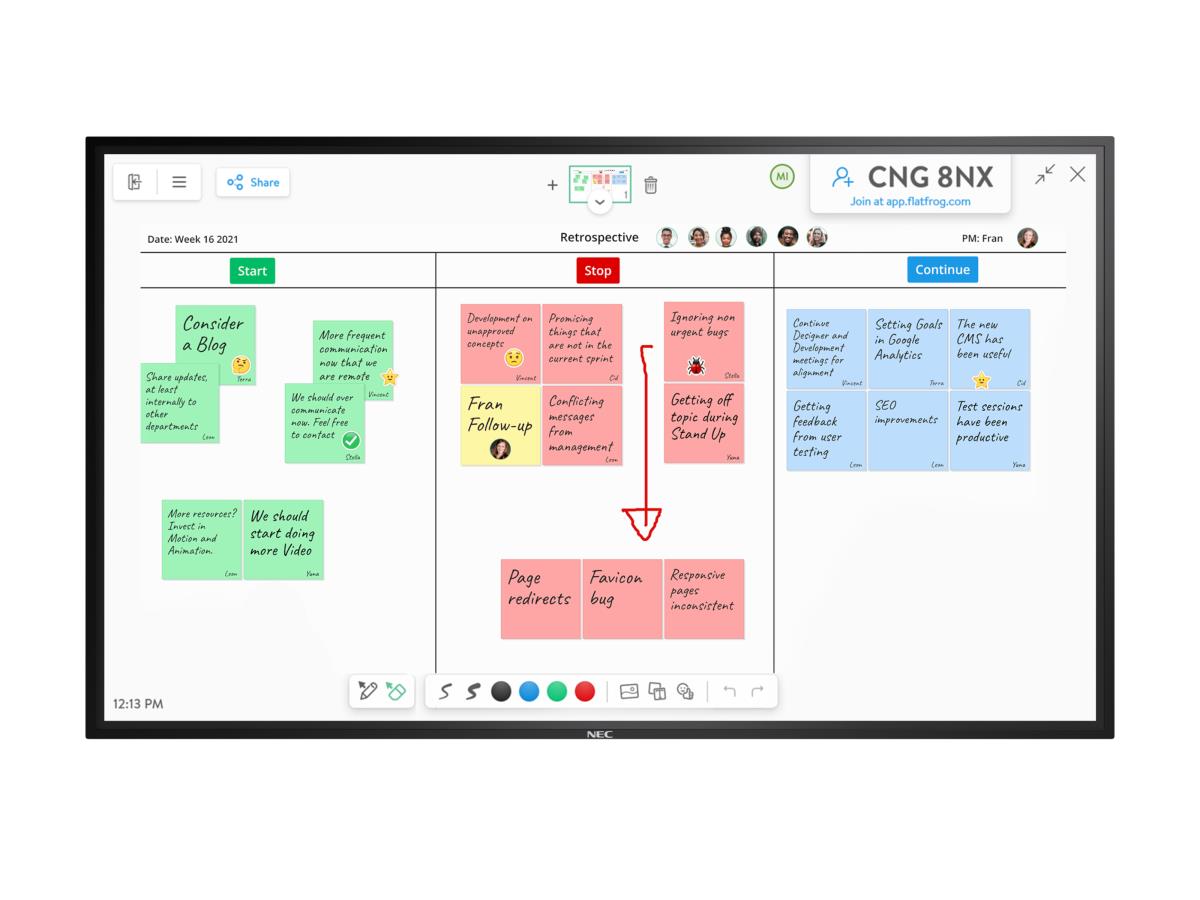

Enjoy the most natural interactive digital experience
Modern meeting spaces drive the demand for advanced touch technology with innovative design. To support interactive sessions, the NEC InGlassTM Touch Board along with the responsive passive pen brings superior paper-like writing with minimal latency to a digital canvas. With its slim bezel design, the technology seamlessly integrates into modern interior styling.

High brightness levels ensure excellent readability and image reproduction even in today’s typically bright meeting spaces where maintaining a motivational environment is paramount. The anti-glare coating minimizes disturbing reflections and helps to eliminate niggling fingerprints on the touch surface.

Specs
Display
Panel type
IPS
LED backlight
Yes
LED backlighting type
Direct-LED
Display diagonal
2.18 m (86")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
Yes
Touchscreen technology
InGlass
Number of simultaneous touchpoints
20
Multi-touch
Yes
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
8000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.073 billion colours
Display diagonal (metric)
217.4 cm
Horizontal scan range
15 - 135 kHz
Vertical scan range
23 - 76 Hz
Colour depth
10 bit
Native refresh rate
60 Hz
Haze rate
28%
Surface hardness
7H
Touch response time
15 ms
Colour gamut
68%
Ports & interfaces
HDMI ports quantity
3
HDMI input ports quantity
2
HDMI output ports quantity
1
DisplayPorts quantity
3
DisplayPorts in
2
DisplayPorts out
1
USB port
Yes
USB ports quantity
3
USB version
2.0
USB connector type
USB Type-A, USB Type-B
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Number of speaker outputs
1
RS-232 interface
Yes
SDM module slot
Yes
Audio
Built-in speaker(s)
No
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Bezel width (bottom)
2.25 cm
Bezel width (side)
2.25 cm
Bezel width (top)
2.25 cm
Anti-glare screen
Yes
Positioning accuracy
1 mm
Performance
Purpose
Corporate
Picture-in-Picture
Yes
Operating hours (hours/days)
24/7
Pen type
Passive pen
International Protection (IP) code
IP5X, IP2X
Power
Power consumption (typical)
320 W
Power consumption (standby)
0.5 W
Energy consumption (SDR) per 1000 hours
193 kWh
AC input voltage
100-240 V
AC input frequency
50-60 Hz
Weight & dimensions
Display width
1972 mm
Display depth
91.5 mm
Display height
1142 mm
Display weight
76 kg
Packaging data
Package width
2090 mm
Package depth
225 mm
Package height
1225 mm
Package weight
94.1 kg
Packaging content
Remote control included
Yes
Batteries included
Yes
Stylus pen
Yes
Number of stylus pens
2
Cables included
AC, HDMI, USB
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 80%
