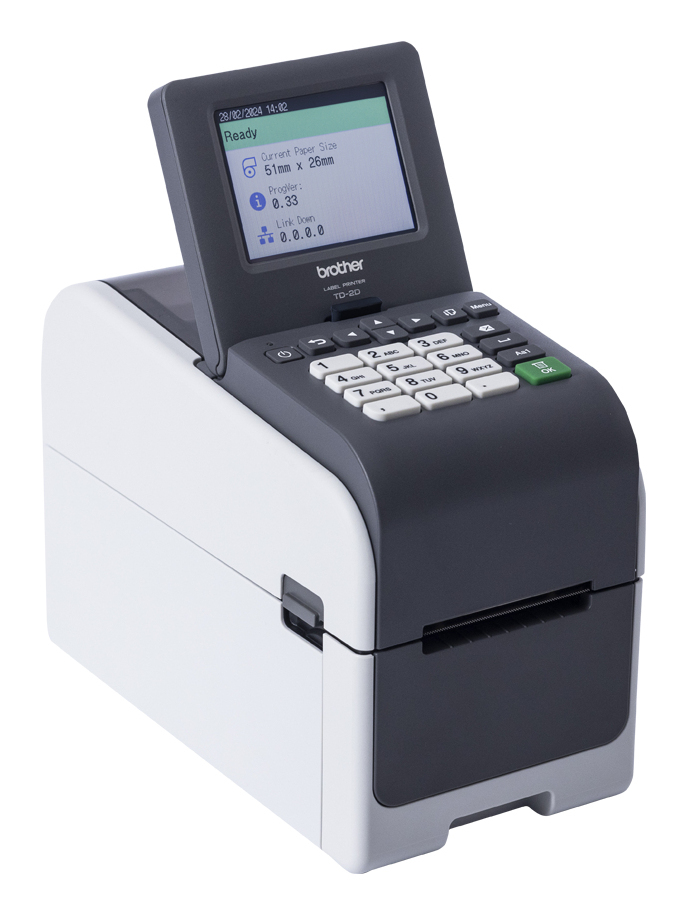

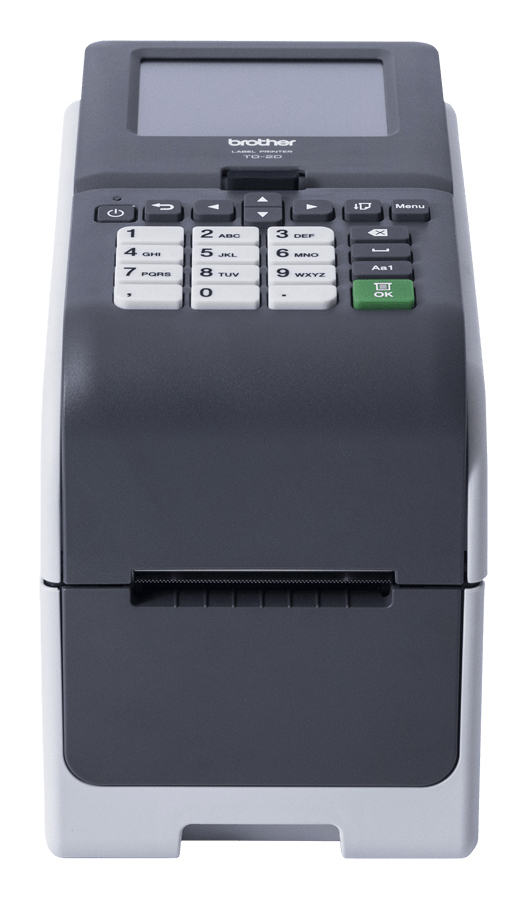

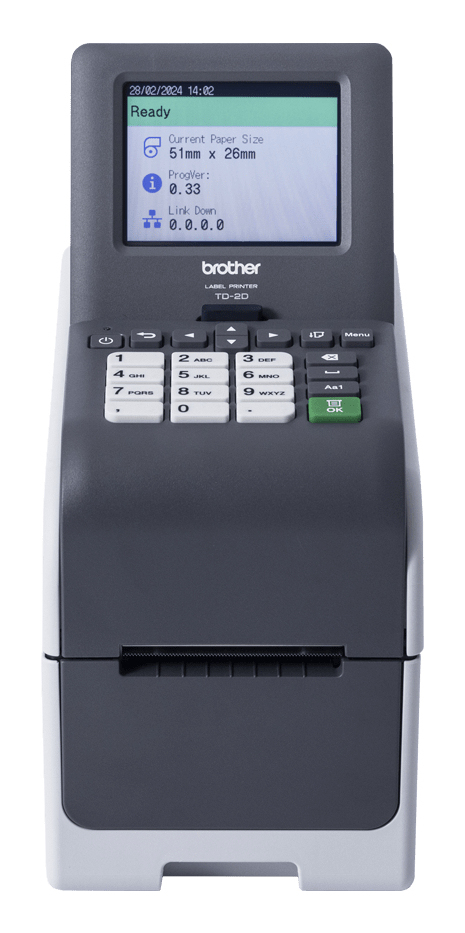

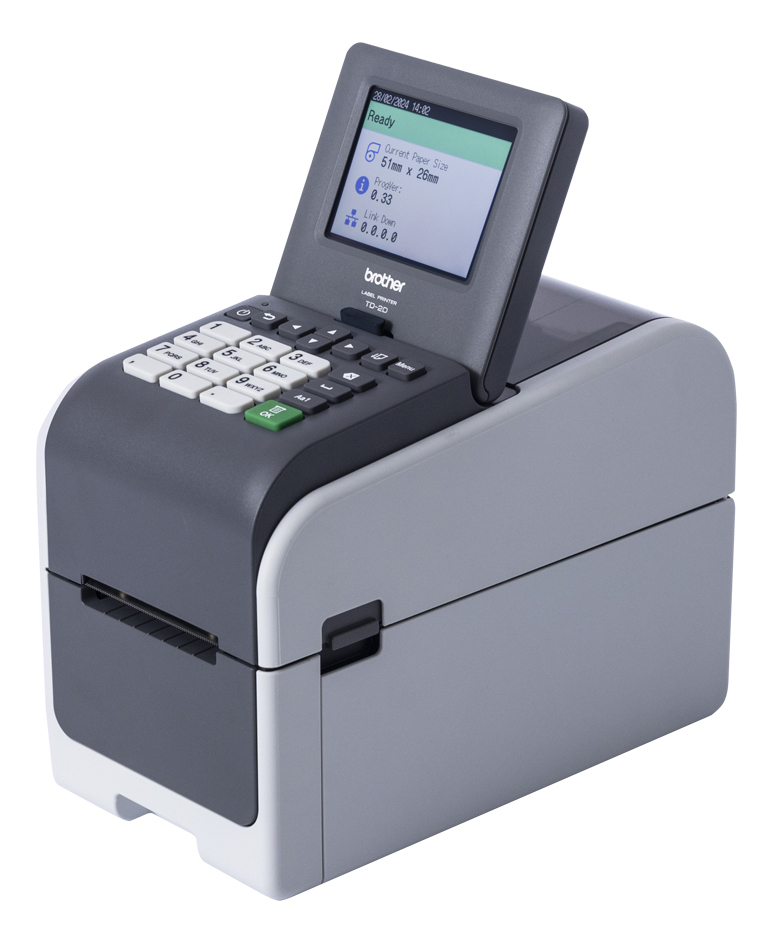

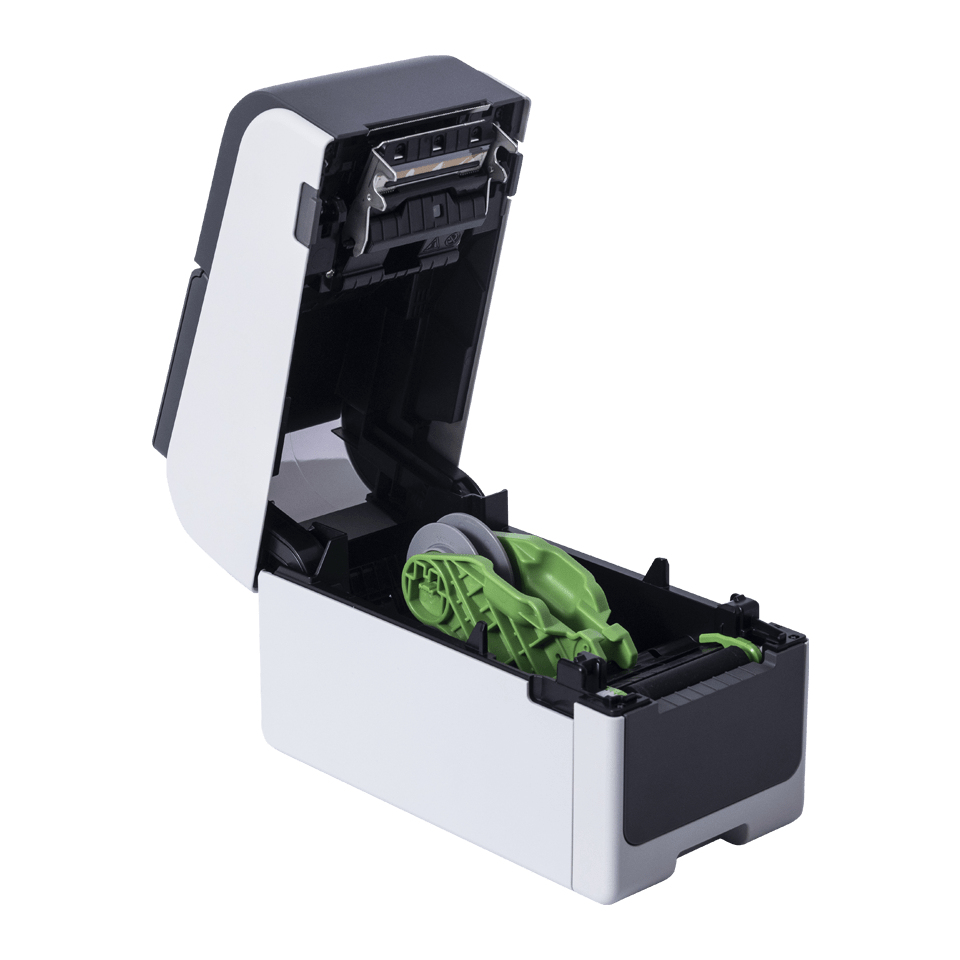

BROTHER Td-2350dsa203 - Desktop Label Printer - Direct Thermal - 63mm - Rs232c / USB / Bluetooth / Wifi
Redcorp# 0735A783
Article# TD2350DSA203Z1
Td-2350dsa203 - Desktop Label Printer - Direct Thermal - 63mm - Rs232c / USB / Bluetooth / Wifi
Other recommendations for your business

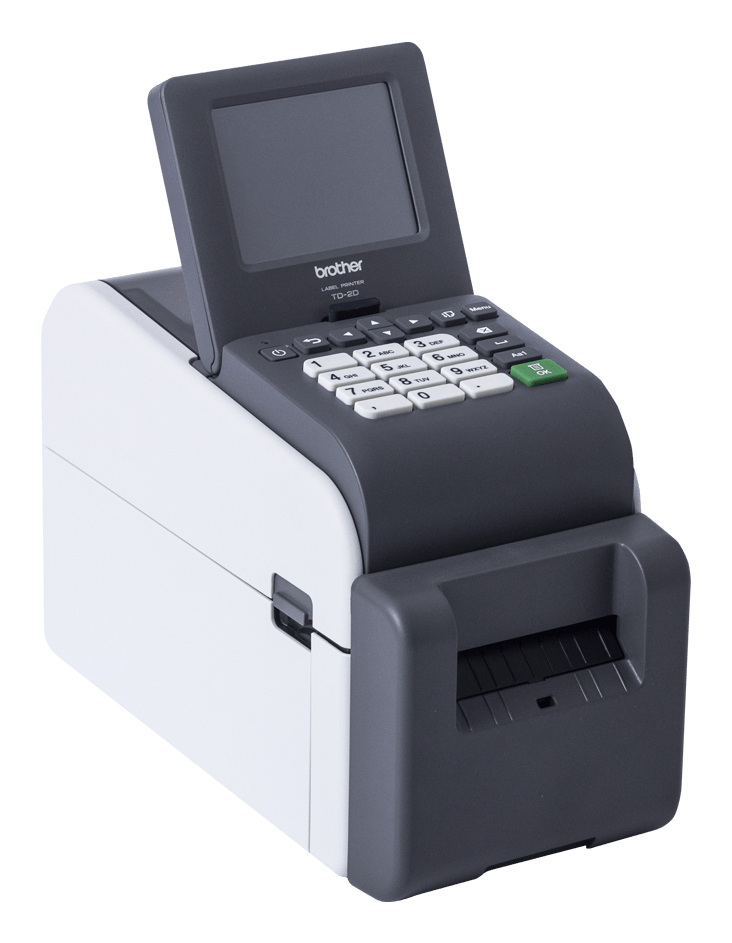

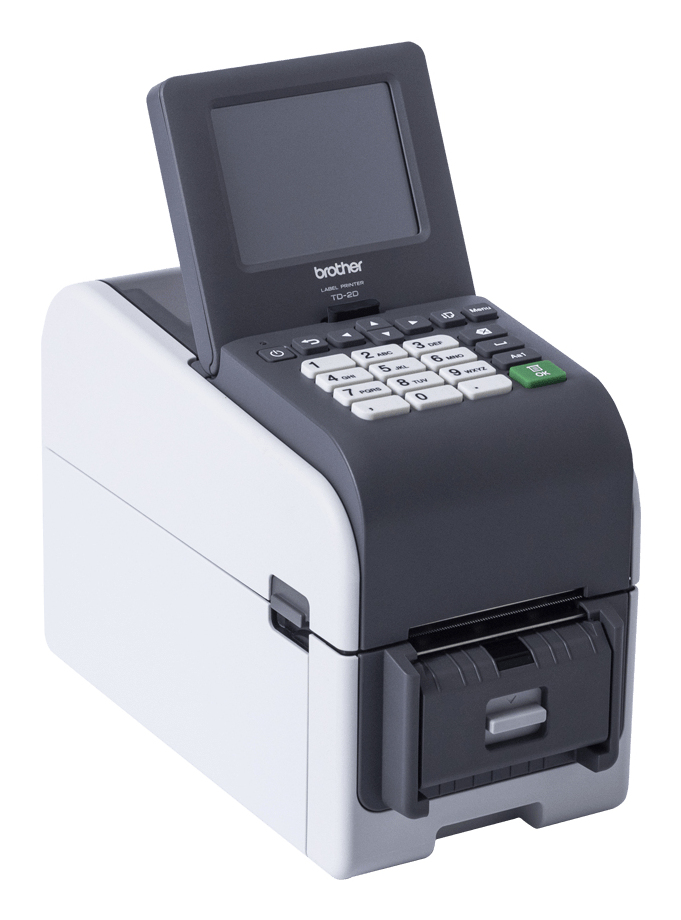

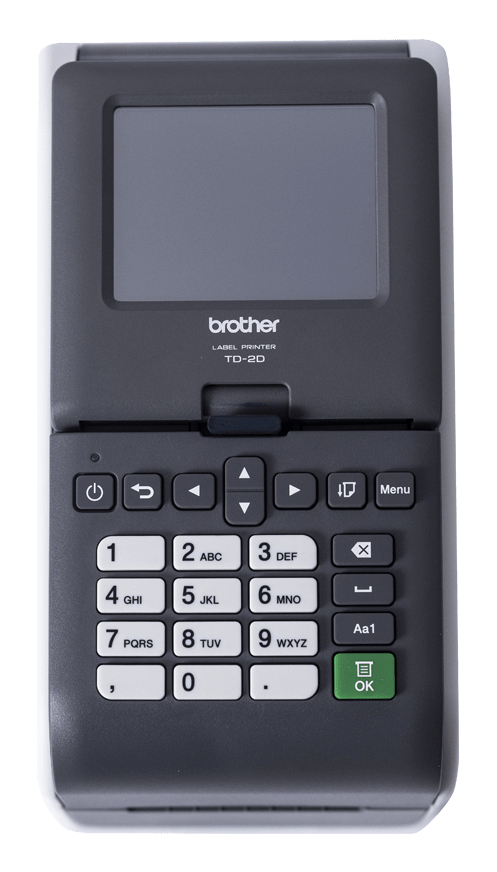

Experience the best of both worlds with the TD-2350DSA203: standalone functionality with advanced connectivity. Store up to 255 label designs and select to print with the keyboard and tiltable color touch LCD display for offline printing. Utilize the real-time clock to program auto-time stamp for food expiration or maintenance due. Build out further efficiency with an optional cutter or label peeler to adapt your printing operations to business needs. And with Wi-Fi® and Bluetooth® wireless connectivity, you get flexible point-of-application printing that boosts efficiency and service.
Specs
Printing
Print technology
Direct thermal
Colour
No
Maximum resolution
203 x 203 DPI
Print speed
152 mm/sec
Maximum printing width
5.9 cm
Minimum print length
6.4 mm
Paper handling
Ribbon length
3 m
Maximum label length
3 m
Maximum roll diameter
12.7 cm
Media thickness
0.058 - 0.279 mm

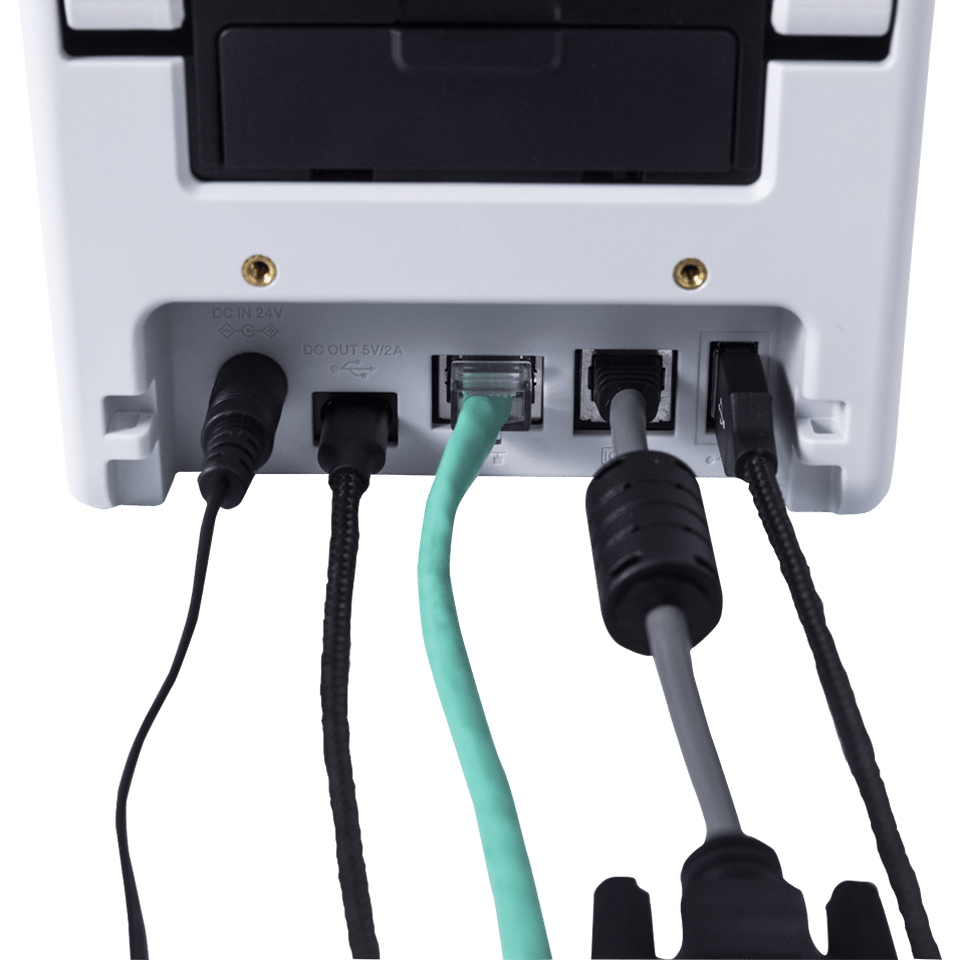

Ports & interfaces
Connectivity technology
Wired & Wireless
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth
Yes
Bluetooth version
5.2+EDR
USB port
Yes
USB 2.0 ports quantity
1
RS-232 ports
1
Performance
Page description languages
ESC P, Raster_P
Internal memory
256 MB
Built-in barcodes
AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, MSI, MaxiCode, Micro QR Code, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts
10
Security algorithms
64-bit WEP, 128-bit WEP, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP, WPA-PSK, WPA2-PSK, WPA3-SAE
Design
Product colour
Black, Grey

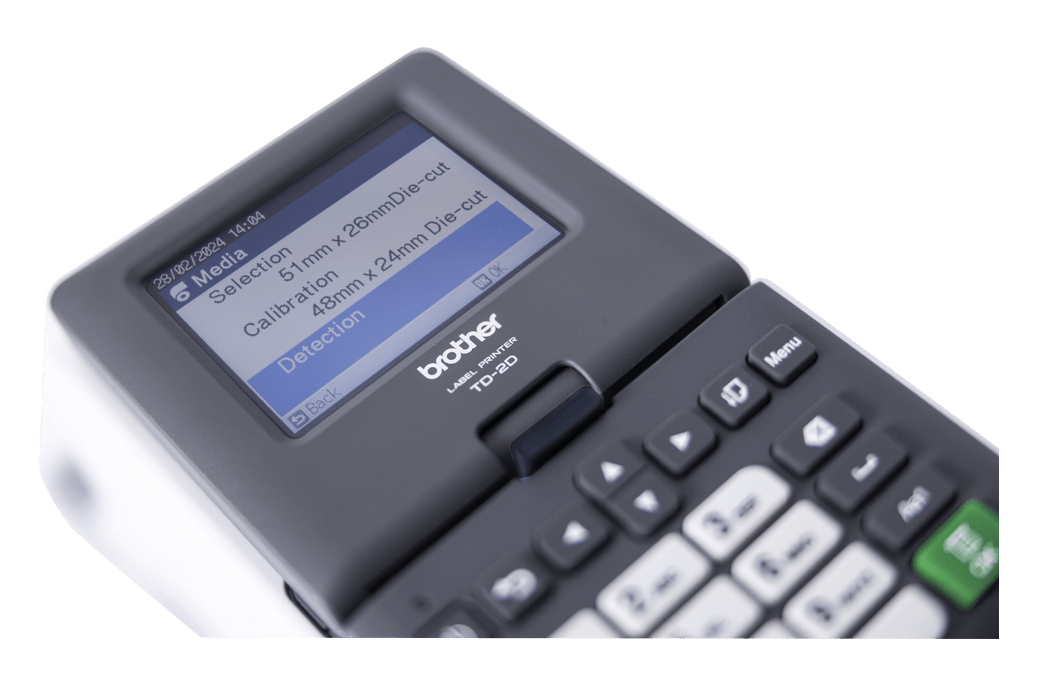

Built-in display
Yes
Display
LCD
Colour display
Yes
Control type
Buttons, Touch
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
24 V
AC adapter output current
3.6 A
USB port voltage
5 V
USB port current
3 A
Power source type
AC
System requirements
Windows operating systems supported
Windows 10, Windows 11
Mobile operating systems supported
Android, iOS
Linux operating systems supported
Yes
Operational conditions
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
181 mm
Depth
306 mm
Height
325 mm
Weight
1.86 kg
Packaging data
Package width
306 mm
Package depth
181 mm
Package height
325 mm
Package weight
2.9 kg
Packaging content
Cables included
USB
Logistics data
Pallet gross height
17.8 cm
Pallet gross weight
631.2 kg
Master (outer) cases per pallet
20 pc(s)
Master (outer) cases per pallet layer
4 pc(s)
Layers per pallet
5 pc(s)
Products per pallet
60 pc(s)
Technical details
Pallet type
800 x 1200 mm
Other features
Country of origin
Vietnam
Warranty period
3 year(s)
