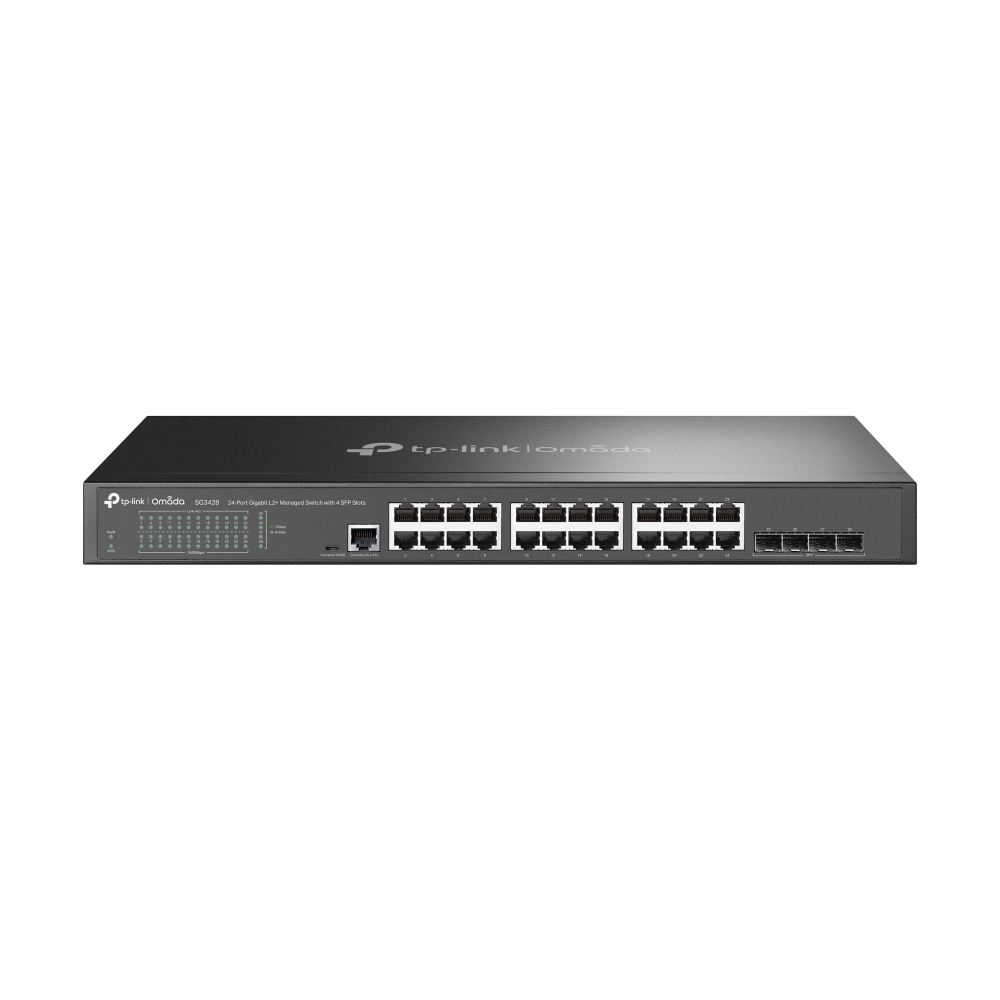

TP-LINK Switch Jetstream Tl-sg3428 24-port Gigabit L2 Managed With 4 Sfp Slots

Redcorp# P6043973   Article# TL-SG3429
 Search More  Hub/Switch
Key Specifications
More Details

Other recommendations for your business


TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Specs
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
SFP module slots quantity
4
Console port
RJ-45/Micro-USB
Network
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support
No
Port mirroring
Yes
IP routing
Yes
Policy-based routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
IPv4 routes
48
IPv6 routes
48
VLAN support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4000
Data transmission
Switching capacity
56 Gbit/s
Forwarding rate
41.66 Mpps
MAC address table
16000 entries
Store-and-forward
Yes
Static route
Yes
Number of static routes
48
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
12 MB
Security
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
MAC address filtering
Yes
Static port security
Yes
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Authentication
MAC-based authentication, Port-based authentication
Authentication type
AAA, RADIUS, TACACS+
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Number of fans
0 fan(s)
Power
Power source
AC
Power supply included
No
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
20.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
70.3 BTU/h
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
LAN (RJ-45)
Quick start guide
Yes
