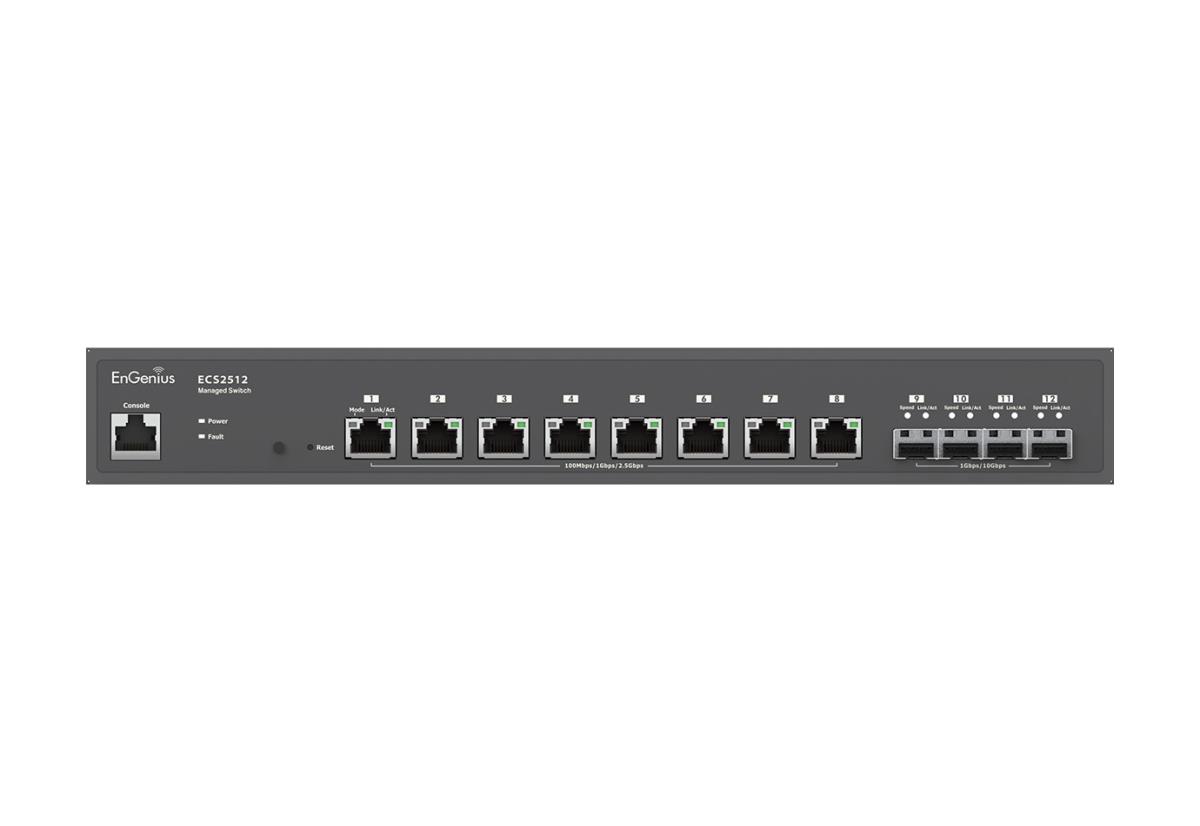

ENGENIUS Ecs2512 Cloud Managed 8-port Multi Gig Switching 2.5g With 4 10g Sfp+ Uplink Ports
Redcorp# Q4342222
Article# ECS2512
Ecs2512 Cloud Managed 8-port Multi Gig Switching 2.5g With 4 10g Sfp+ Uplink Ports
EnGenius Cloud Managed Layer 2+ Multi-Gigabit 2.5Gb Switch, ECS2512, provides SMBs with an easy-to-use and cost-effective network solution. With its 8-Port 2.5G and 4-Port 10G SFP+ uplink, it ensures high-speed data transfer for bandwidth-intensive applications. With zero-touch provisioning and centralized cloud management, it simplifies network management and saves time.
Specs
Management features
Switch type
Managed
Switch layer
L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
Data transmission
Switching capacity
120 Gbit/s
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Design
Rack mounting
Yes
Product colour
Black
LED indicators
Yes
Performance
Memory type
SDRAM
Internal memory
512 MB
Flash memory
128 MB
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
330 mm
Depth
230 mm
Height
44 mm
Weight
1.9 kg
Packaging content
Cables included
AC, LAN (RJ-45)
Quick start guide
Yes
Rack mount kit
Yes
Logistics data
Harmonized System (HS) code
85176990
