UBIQUITI NETWORKS Unifi Express 7
Redcorp# N3303334
Article# UX7
Unifi Express 7
Other recommendations for your business
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
Specs
Design
Product colour
White
Enclosure material
Polycarbonate (PC)
LED indicators
Status
Features
Antenna type
Internal
Antenna gain level (max)
6 dBi
Antennas quantity
4
Performance
Control display unit
Yes
Display type
LCM
Built-in processor
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor model
Cortex-A53
Processor frequency
1500 MHz
Number of processors installed
1
Internal memory
3000 MB
Protocols
Routing protocols
OSPF
DHCP server
Yes
Network
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Networking standards
IEEE 802.1Q
Wi-Fi
Yes
WLAN data transfer rates supported
1,2,5.5,6,6.5,9,11,12,18,24,36,48,54,300 Mbit/s
Bluetooth
Yes
Frequency band
2.4, 5, 6 GHz
Load balancing
Yes
Data transfer rate
5.7 Gbit/s
Wireless connection
Yes
Security
Security algorithms
802.1x RADIUS, IPSec, PPSK, TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Firewall security
Yes
VLAN support
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
WAN connection
Ethernet (RJ-45)
Management features
Quality of Service (QoS) support
Yes
Reset button
Yes
Multicast support
Yes
Power
Power consumption (max)
22 W
Input voltage
100 - 240 V
Input current
5 A
Electromagnetic (EMP) protection
Yes
Electromagnetic (EMP) protection (air)
8 kV
Electromagnetic (EMP) protection (contact)
4 kV
Weight & dimensions
Width
117 mm
Depth
117 mm
Height
42.5 mm
Weight
422 g

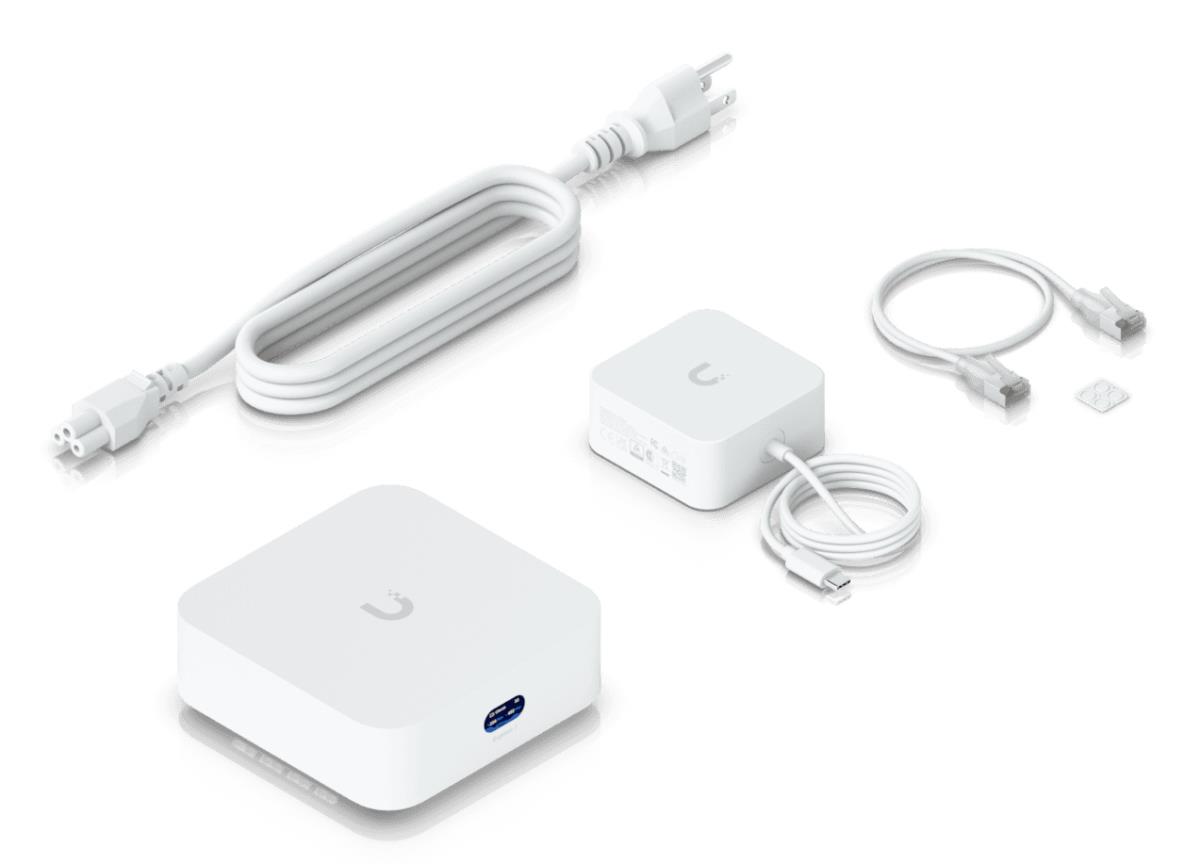

Packaging content
AC adapter included
Yes
Cables included
LAN (RJ-45), Power
Operational conditions
Operating temperature (T-T)
-10 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Display
Display diagonal
2.44 cm (0.96")
