UBIQUITI NETWORKS Dream Router 7
Redcorp# N3303215
Article# UDR7
Dream Router 7
Other recommendations for your business
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Specs
WAN connection
Ethernet WAN
Yes
DSL WAN
No
SIM card slot
No
3G/4G USB modem compatibility
No
Wireless LAN features
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)
5700 Mbit/s
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN data transfer rate (first band)
688 Mbit/s
WLAN data transfer rate (second band)
4300 Mbit/s
WLAN data transfer rate (third band)
5700 Mbit/s
Network
Ethernet LAN
Yes
Ethernet LAN interface type
2.5 Gigabit Ethernet
Ethernet LAN data rates
2500 Mbit/s
Networking standards
IEEE 802.1Q
Multicast support
Yes
Load balancing system
Yes
Policy-based routing
Yes
Maximum coverage
160 m²
VPN server
Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
Maximum Tx power (2.4 GHz)
23 dBmW
Maximum Tx power (5 GHz)
26 dBmW

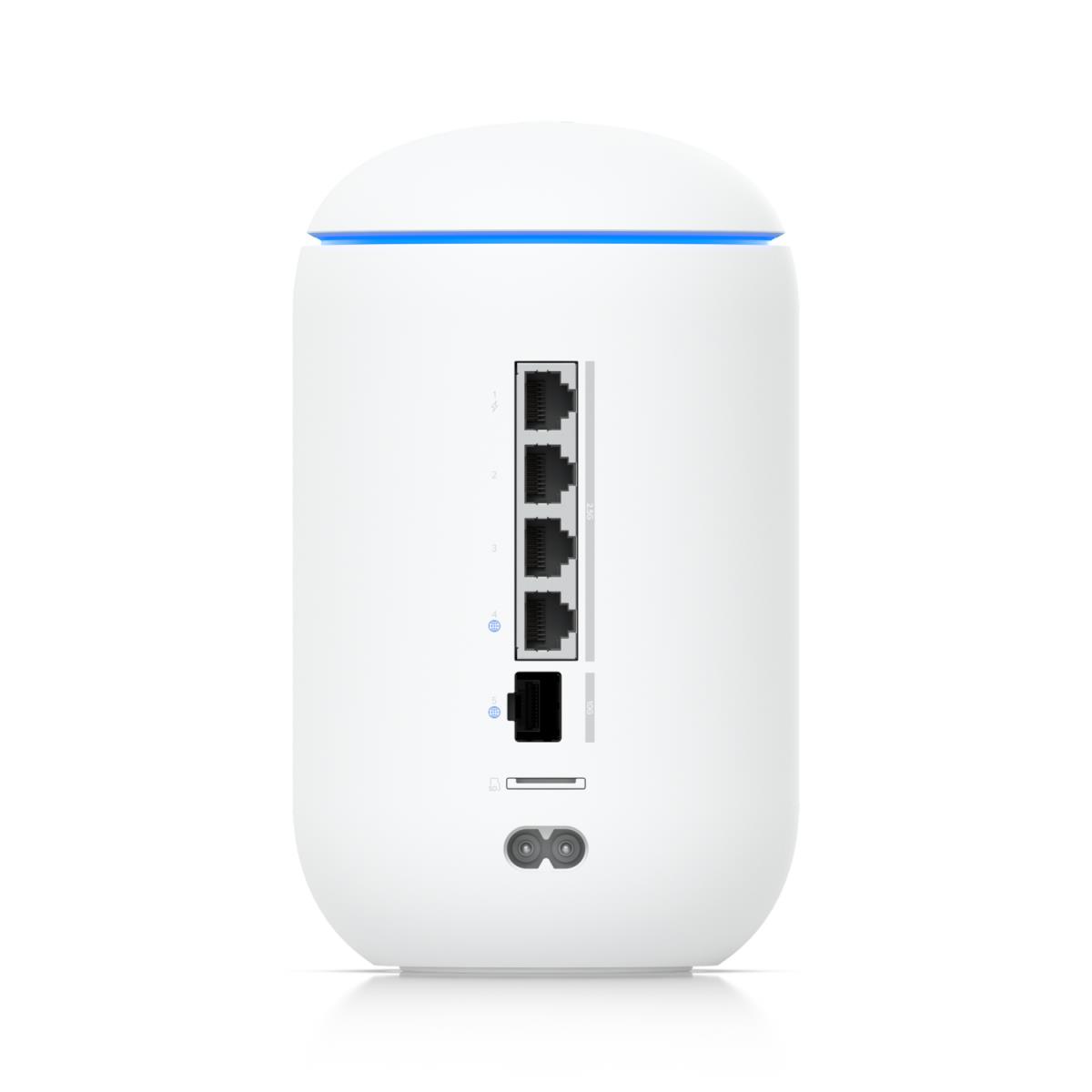

Ports & interfaces
Ethernet LAN (RJ-45) ports
4
USB port
No
Memory card slot(s)
Yes
Compatible memory cards
MicroSD (TransFlash)
Fiber optic connector
SFP+
Management features
Web-based management
Yes
Quality of Service (QoS) support
Yes
Reset button
Yes
MU-MIMO technology
Yes
MIMO
Yes
Security
Security algorithms
PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Firewall
Yes
Filtering
Yes
MAC address table
2000 entries
Protocols
DHCP server
Yes
Routing protocols
OSPF
Design
Product colour
White
Housing material
Polycarbonate (PC)

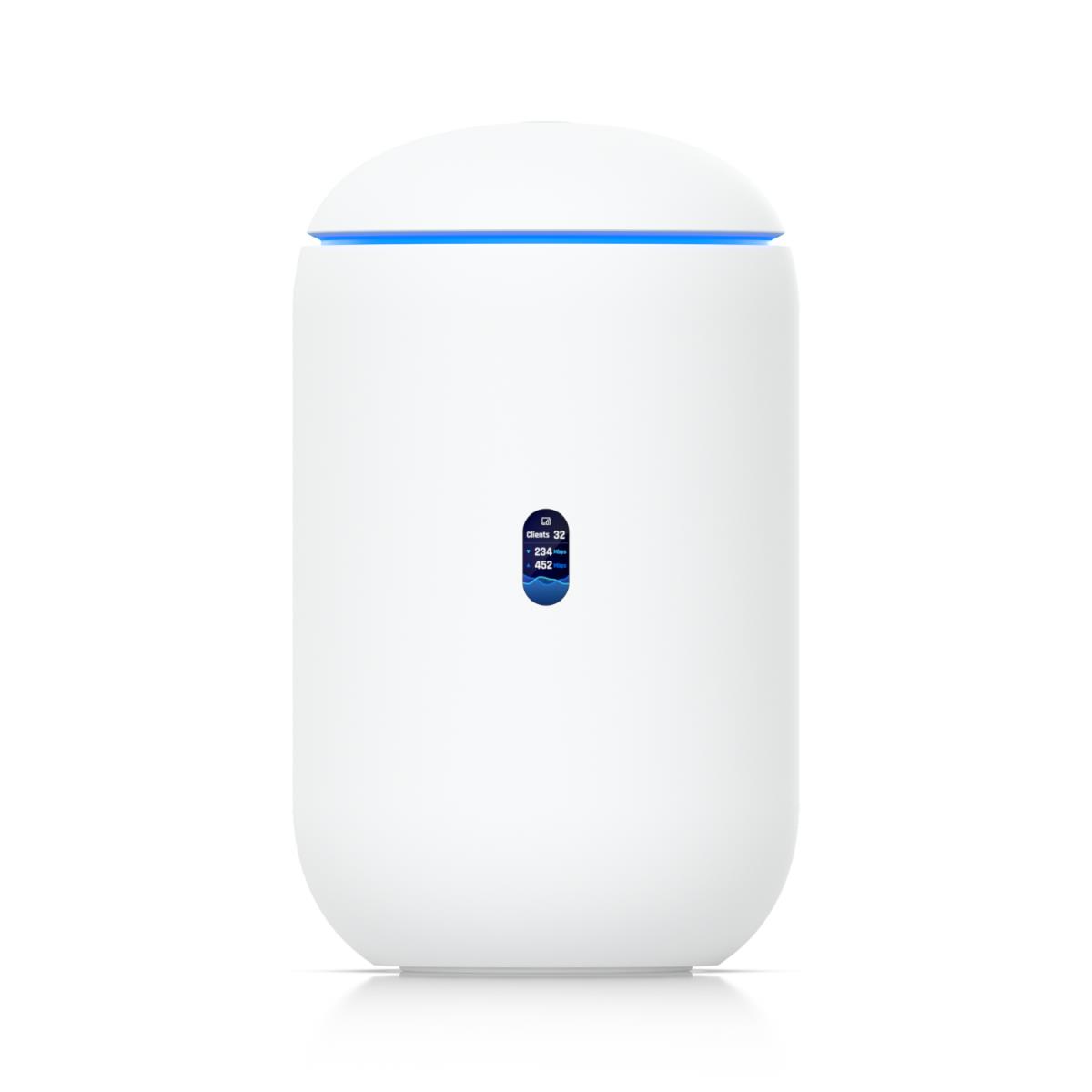

LED indicators
Status
Built-in display
Yes
Display type
LCM
Product type
Tabletop router
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)

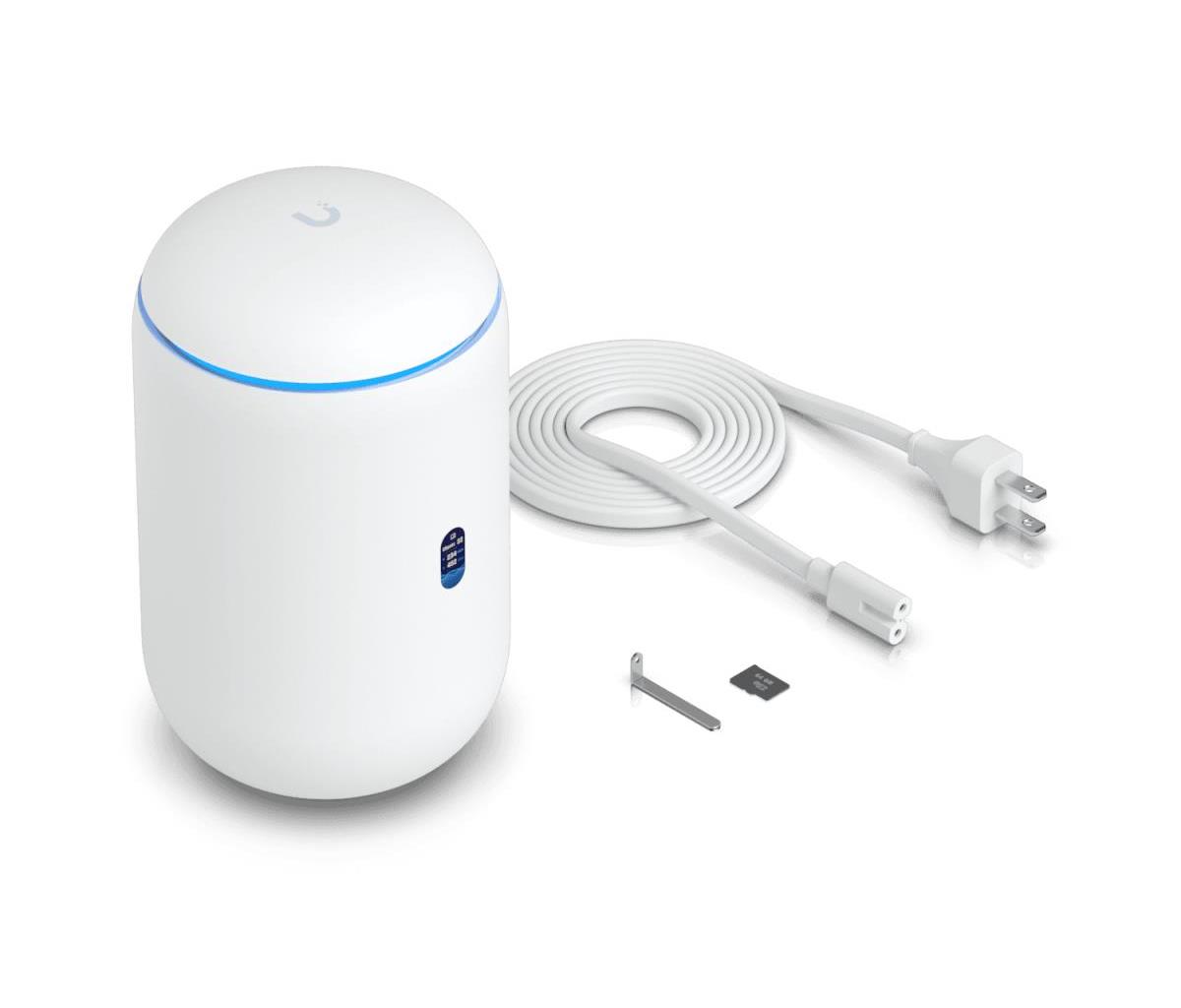

Packaging content
Cables included
AC
Manual
Yes
Antenna
Antenna design
Internal
Antenna gain level (max)
7 dBi
Features
Built-in processor
Yes
Processor architecture
ARM Cortex-A53
Processor frequency
1500 MHz
Processor cores
4
Internal memory
3000 MB
Number of simultaneously connected devices (max)
300
Bluetooth
Yes
Power
Power source type
AC, PoE
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
26 W
Power supply
50 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
57 V
Operational conditions
Operating temperature (T-T)
-10 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
110 mm
Depth
110 mm
Height
184.1 mm
Weight
1.1 kg
Packaging data
Number of products included
1 pc(s)
