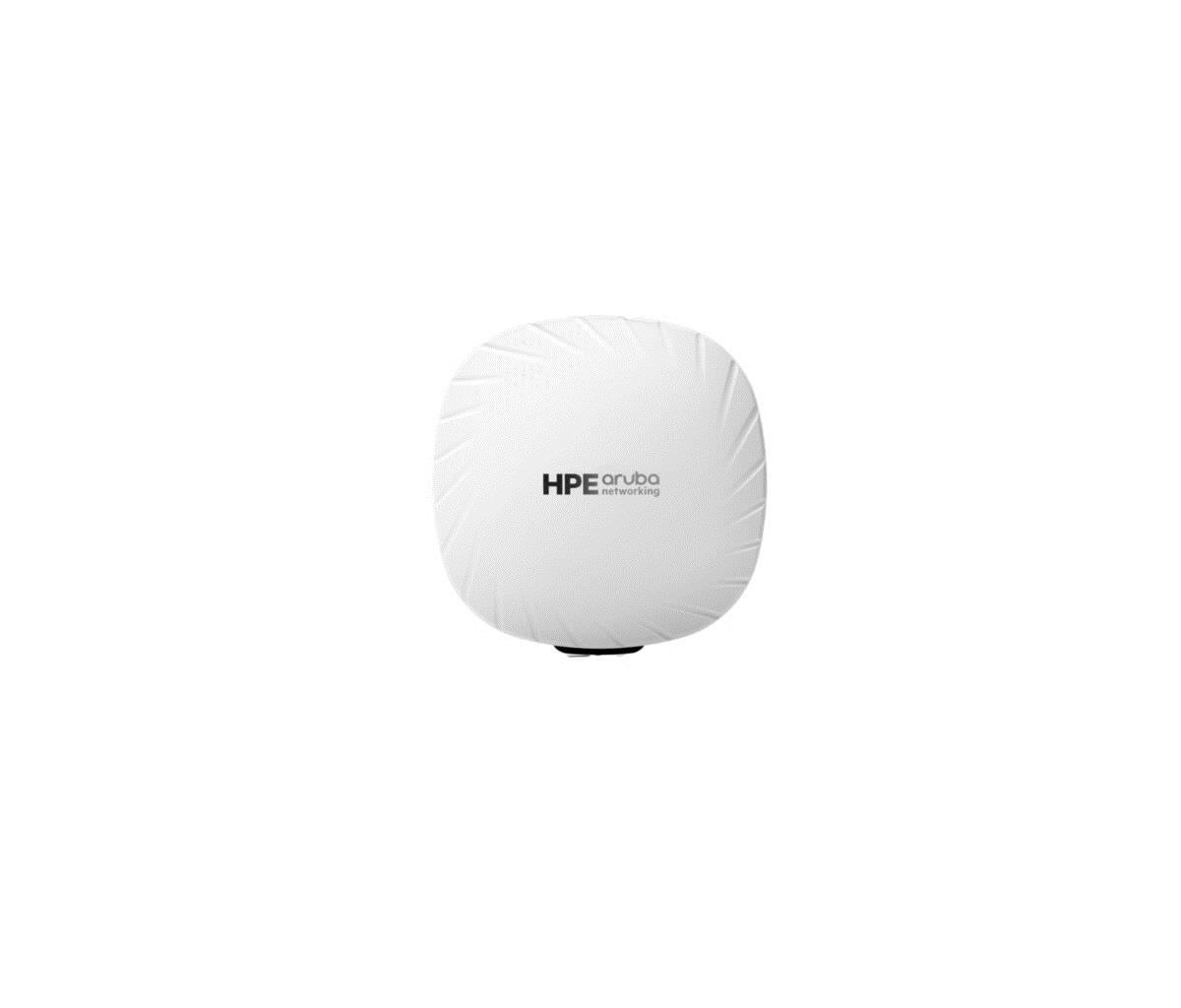

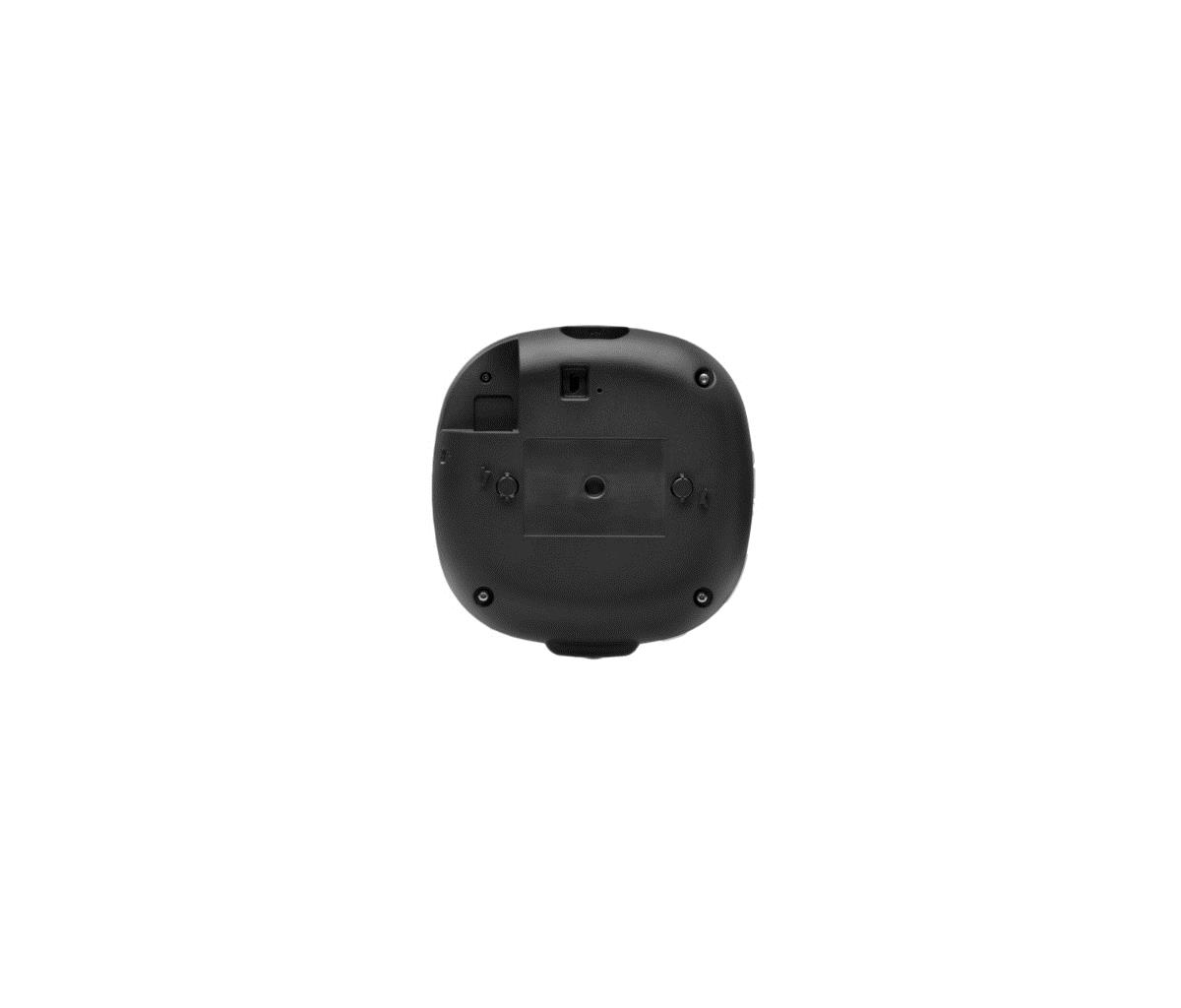

Hewlett-Packard Enterprise Aruba Networking AP-503 (RW) 10-Pack Dual Radio 2x2:2 Wi-Fi 6 Campus Access Point
Redcorp# 1171ANE3
Article# S1E83A
Aruba Networking AP-503 (RW) 10-Pack Dual Radio 2x2:2 Wi-Fi 6 Campus Access Point
Other recommendations for your business
The 503 series are cost-effective, compact Wi-Fi 6 APs for indoor use that feature 1.49 Gbps maximum combined data rate with dual spatial streams and 80MHz channels.
Specs
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1490 Mbit/s
Networking standards
IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Cabling technology
10/100/1000Base-T(X)
MIMO
Yes
Trusted Platform Module (TPM)
Yes
Security
Security algorithms
WPA3, WPA, WPA2
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
USB connector type
USB Type-A
Power
Power over Ethernet (PoE)
Yes
Design
Product colour
White
Reset button
Yes
LED indicators
Reset, Status, System
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
4.8 dBi
Weight & dimensions
Width
145 mm
Depth
35 mm
Height
145 mm
Weight
255 g
Packaging data
Package width
196 mm
Package depth
183 mm
Package height
67 mm
Package weight
515 g
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 55 °C
Storage relative humidity (H-H)
10 - 100%
